제품 상세 정보:
|
| 측정 범위: | 0-1250μm,(0-6000μm, 선택 0-9500μm) | 최소 접촉 면적: | 0-1250μm:Φ11.5mm,0-6000μm:Φ16mm, 0-9500μm:Φ20.5mm |
|---|---|---|---|
| 측정 정확도: | ±(1%-3%)H+1.5μm, (0-6000μm,0-9500μm:±3%H+2μm | 해결: | 0.1μm /1μm |
| 가장 얇은 기판: | 0.4mm | 최소 곡률: | 볼록 5mm; 오목한 25mm |
| 강조하다: | Digital coating thickness gauge Bluetooth,Magnetic eddy current thickness meter,Non-destructive testing equipment 0-9500μm |
||

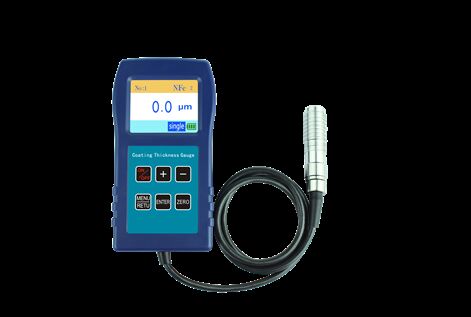

TG-6003 Digital Coating Thickness Gauge Magnetic/Eddy Current 0-9500μm with Bluetooth
Overview
Coating thickness gauge is a professional non-destructive testing instrument for measuring the thickness of coating on the surface of metal materials and anti-corrosion and fireproof coatings. Different measuring methods are used according to different metal substrates.
A. Magnetic thickness measurement method can be used to measure the thickness of non-magnetic coating on magnetic metal substrate (such as steel and iron) without damage (such as zinc plating, chromium, Gu, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, coating, anti-corrosion and fireproof coating, etc.).
B.Eddy current thickness measurement method can measure the thickness of non-conductive coating on non-magnetic metal substrate (such as aluminum, copper, stainless steel) non destructively (such as paint, powder, plastic, rubber, enamel, enamel, electrophoresis, etc.).
Application: Widely used in coating industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields.
Technical parameters
| Measuring principle | Magnetic thickness measurement£ Eddy current thickness measurement£ |
| Measuring range | 0-1250μm,(0-6000μm,0-9500μm optional) |
| Minimum contact area | 0-1250μm:Φ11.5mm,0-6000μm:Φ16mm, 0-9500μm:Φ20.5mm |
| Measurement accuracy | ±(1%-3%)H＋1.5μm, (0-6000μm,0-9500μm:±3%H＋2μm |
| Thinnest substrate | 0.4mm |
| Minimum Curvature | Convex 5mm; concave 25mm |
| Resolving power | 0.1μm /1μm |
| Power source | three alkaline batteries |
| Size | 130(L)×70(W)×25(H)mm |
| Display | 2.3 inch color screen |
| Weight | 100g |
| Using environment | 0℃-60℃and 20%RH—90%RH,not strong magnetic place. |
1.Measuring speed, good sensitivity, high accuracy of measurement
2.It has two test modes: SINGLE test (SINGLE) and continuous (CONT
INUE) measurement model
3.It is equipped with four statistical function: the maximum (MAX), the minimum (MIN), average (MEA), frequency measurement
4.Mass storage, can store 2000 measurements (10 groups, each group of 200 data)
5.The function of storing, viewing and deleting data
6.Three calibration methods: zero point calibration, two-point calibration and multi-point calibration
7.Upper and lower limit alarm function (Single measurement)
8.The operation process is marked with beep (Single measurement)
9.Automatic identification of iron-based and non-iron based materials
10.Automatic recognition of Fe and NFe substrates
11.Metric unit conversion μm/Mil
12.Sunlight mode (used in strong light)
13.Double in both English and Chinese languages
14.2.3 inches large color screen display, low voltage indicator
15.Manual/automatic shutdown function
16.Bluetooth with mobile phone APP real-time communication transmission data (only bluetooth version)
