제품 상세 정보:
|
| 측정 범위: | 1.5-240.0mm | 이득을 얻음: | 100dB 이하 |
|---|---|---|---|
| 감지 가능한 공작물 재료: | 탄소강, 주강, 합금강, 스테인레스 강, 구리, 알루미늄, 티타늄 및 기타 도체 재료 | 최소 직경(곡률): | 8mm |
| 음파의 종류: | 전단파 | 프로브의 최대 기울기 각도: | 25° |
| 호스트 보관 온도 범위: | 0 ~+40 ℃ | ||
| 강조하다: | portable EMAT thickness meter,electromagnetic ultrasonic tester,permanent magnet thickness gauge |
||

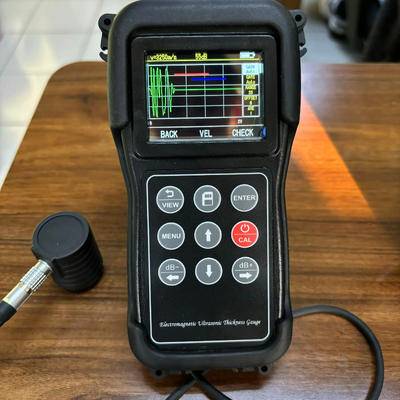

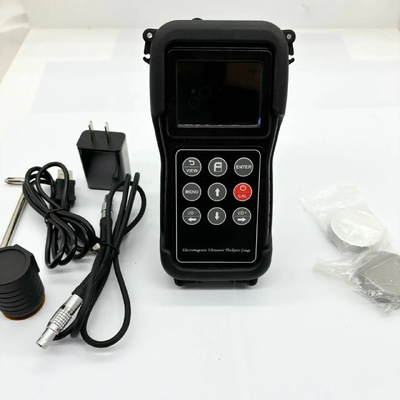

TG-14S Portable EMAT Thickness Meter 1.5~240mm Range Permanent Magnet Electromagnetic Ultrasonic Tester
TG-14S electromagnetic ultrasonic thickness gauge is an ultra small, non-contact thickness measuring instrument without acoustic coupling agent. It can measure the thickness of metal or magnetic conductive materials.The instrument has the following features:
■ Easy to carry
■ The requirements for the workpiece surface are not high, and there is no need to polish the rough surface, which can realize non-contact measurement
■ It is insensitive to the coating and can realize the thickness measurement of coated workpieces or corroded metal pipe.
■ Without acoustic coupling agent, it can realize the thickness measurement of high-temperature workpiece
Technical Specifications
| Detectable workpiece material |
carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum, titanium and other conductor materials |
| Measurement range |
1.5-240.0mm the maximum value of the measurement range is affected by the properties of the measured material, sound attenuation coefficient, surface conditions and other factors |
| Error range |
When the thickness of workpiece is less than 10mm, the error is 0.05mm; when the thickness is more than 10mm, the error is + (0.01 + H / 200) mm (H is the thickness of workpiece) |
| Receiving gain | ≤ 100dB |
| Normal temperature probe |
≤ 80 ℃, 4MHz, mainly used to detect fine-grained materials, such as low carbon steel, aluminum, etc., with a maximum liftable clearance of 3mm |
| High temperature probe | ≤ 800 ℃, 4MHz, mainly used to measure ferromagnetic fine-grained materials, such as low carbon steel, with a maximum liftable clearance of 2mm |
| Lift-off effect |
(actual lift-off distance is related to material properties and degrees), anti-rust film, salt deposits or any other insulating coating (oil, varnish, porcelain, plastic, etc.) can be used as operating clearance |
| The minimum diameter (curvature) of the workpiece | 8mm |
| The maximum tilt angle of the probe | 25° |
| Probe field excitation method | permanent magnet |
| Type of sound wave | shear wave |
| Power supply | built in lithium battery, working time not less than 2.5 hours |
| The normal working temperature range of the host | -10~+50℃ |
| Host storage temperature range | 0~+40℃ |
| Host weight | 250g (with normal temperature probe) |
| Dimensions of the host | length 151mm x width 76mm x thickness 37mm |
General characteristics:
a) The instrument adopts the principle of electromagnetic ultrasonic, and there is no need to grind the surface of the workpiece during the detection process, and no coupling agent is required
b) Configurable probe types: normal temperature probe (≤80℃, short-term measurement), high temperature probe (≤800℃, short-term measurement)
