제품 상세 정보:
|
| 측정 범위: | 0~10000μm | 환경을 사용하십시오: | 온도 : 0 6 -60 ℃, 습도 : 20% RH -90% RH, 강한 자기장 환경에서 사용 |
|---|---|---|---|
| 가장 얇은 기판: | 0.4mm | 측정 정확도: | ± 3% H + 2μm |
| 해결: | 0.1μm /1 μm (100μm 미만 0.1μm, 100μm 이상 1μm) | 최소 기본 영역: | φ 20.5mm |
| 최소 곡률: | 볼록 5mm; 오목한 25mm | ||
| 강조하다: | portable fireproof coating thickness gauge,digital thickness gauge with data storage,fireproof coating gauge with alarm function |
||

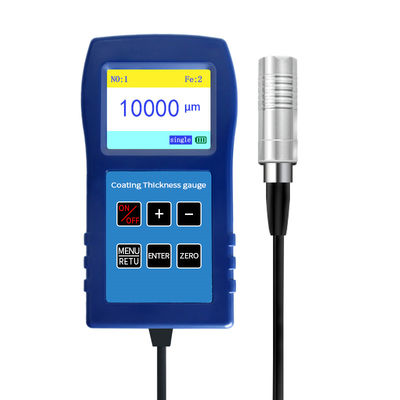

TG-6007 Portable Digital Fireproof Coating Thickness Gauge with Data Storage and Alarm Function
General introduction
TG-6007 coating thickness gauge is a large-scale coating thickness gauge, mainly used to measure the thickness of magnetic metal material surface coating coating object professional non-destructive testing instrument. It adopts the principle of magnetic thickness measurement, which can quickly and non-destructively measure the thickness of non-magnetic coatings on magnetic metal substrates (such as steel, iron) (galvanized, chromium, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, coatings, anti-corrosion and fireproof coatings, etc.), which is very suitable for measuring ultra-thick anti-corrosion coatings on various large workpieces, with a range of up to 13MM, application field: widely used in coating industry, manufacturing, petroleum, chemical industry, shipbuilding, fire engineering, construction industry, commodity inspection and other testing fields
Technical parameters
Instrument features
Simple operation, fast test speed, good sensitivity and high measurement accuracy
Using alloy probe, hard and durable, accurate
There are two measurement methods: continuous measurement and single measurement
There are four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), and number of measurements (No).
Mass storage, can be divided into 10 groups of storage, 200 in each group, a total of 2000 data can be stored
Store data view delete function
Three calibration methods: zero calibration, two-point calibration, and multi-point calibration
Upper and lower limit alarm function (can be set in single measurement mode)
The operation process is marked by a beep (in single measurement mode).
Automatic identification of ferrous and non-ferrous substrates
Metric conversion μm/Mil
Sunshine mode (used in strong light)
English bilingual version
2.3-Inch large color screen with large font size display
Manual/automatic shutdown function

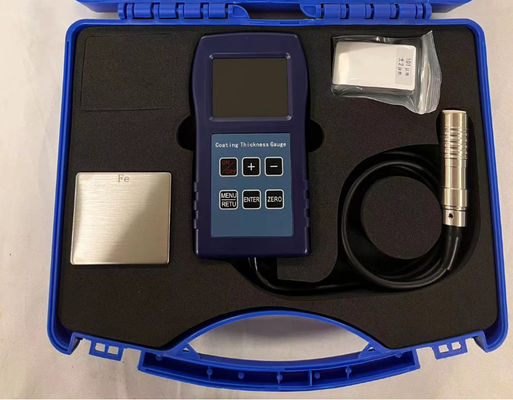

Standard configuration
1 Host TG-6007 √
2 Standard tablets √
3 Iron matrix √
4 Instruction manual √
5 Certificate of conformity √
6 Cleaning cloth √
