제품 상세 정보:
|
| UV(Light)-FLUX 상온 25℃ 380mm 표시: | >6000uW/cm2 | 플럭스 에러: | 0-40C ±10% |
|---|---|---|---|
| 광 분포 특성: | 센터 등급 | 전원공급장치: | AC220-240V 50/60Hz |
| 힘: | UV LED -24VA | 파장: | 실온25℃ 365nm±3nm(UVA) |
| 강조하다: | ceiling mounted LED UV light,NDT fluorescent testing equipment,suspension type UV light |
||

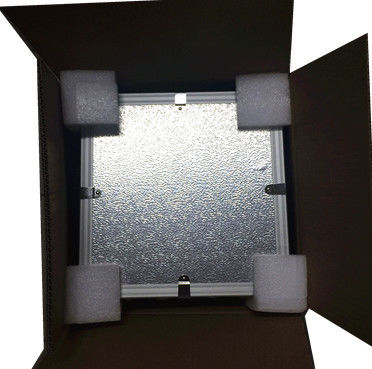

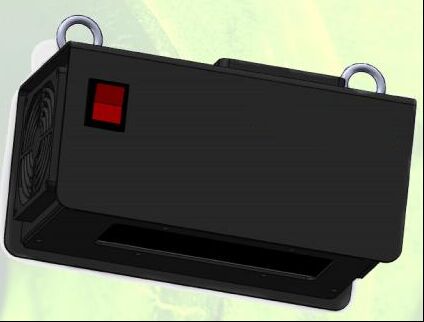

DG-24W Suspension Type Ceiling Mounted LED UV Light for NDT Fluorescent Testing
Characteristic
Big area UV light source, Irradiance>6000uw/cm2
temperature rises less than 8℃
Light source life 30000H
|
Itme |
parameter |
|
Style |
Suspension |
|
UV-FLUX Indoor temperature 25℃ 380mm location |
>6000uW/cm2 |
|
wave length |
Indoor temperature 25℃ 365nm±3nm(UVA) |
|
White light content |
<22Lux |
|
FLUX error |
0-40℃ ±10% |
|
Grading feature |
Centre grading |
|
Power supply |
AC220-240V 50/60Hz |
|
Power |
UV LED -24 VA |
|
Outline dimension |
220mm(W)*120mm(D)*140mm(H) |
|
Weight |
3.6kgs |
Feature:
24VA power saving of power consumption
30000H life expectancy of light source
UV-A Irradiance>6000uw/cm2
White light Irradiance<22LUX
Chip is original import
0 UV-B/UV-C contained
Small size, Convenient to install
Continuous operation and external surface temperature rises less than 8 Celsius
No need to preheat,instant to reach 100% power
