Pocket LED Ultraviolet Torch Lamp Long Working Hours and Stable Quality

Pocket LED Ultraviolet Torch Lamp Long Working Hours and Stable Quality
Pocket LED Ultraviolet Torch Lamp Long Working Hours and Stable Quality Pocket LED Ultraviolet Torch Lamp Long Working Hours and Stable Quality Pocket LED Ultraviolet Torch Lamp Long Working Hours and Stable Quality Pocket LED Ultraviolet Torch Lamp Long Working Hours and Stable Quality Pocket LED Ultraviolet Torch Lamp Long Working Hours and Stable Quality

큰 이미지 :  Pocket LED Ultraviolet Torch Lamp Long Working Hours and Stable Quality

제품 상세 정보:
원래 장소: 중국
브랜드 이름: HUATEC
인증: ISO,CE
모델 번호: DG-30
문서: DG-30 HUATEC LED Ultraviole...mp.pdf
결제 및 배송 조건:
최소 주문 수량: 1개
포장 세부 사항: 카톤 박스에서
배달 시간: 결제 후 5~7일 소요
지불 조건: T/T, 페이팔, 웨스턴 유니온
공급 능력: 달 당 100대 pc

Pocket LED Ultraviolet Torch Lamp Long Working Hours and Stable Quality

설명
입력 전압: 3.7-4.2V 출력 전력: 3W
38개 센티미터 거리에 있는 자외선의 강도: ≥13000 uW/cm2 38cm 거리에 있는 방사성 영역: 45mm
빛 입구 창의 지름: ¢ 34 배터리 용량: 4800mah
충전 시간: ≥6시간 근무시간: ≥5시간
강조하다:

Pocket LED UV torch lamp

,

UV torch lamp long working hours

,

Non-destructive testing UV lamp

Pocket LED Ultraviolet Torch Lamp Long Working Hours and Stable Quality


1· Introduction

DG-30 pocket lamp type LED Ultraviolet Lamp is professional portable UV Lamp researched and developed by our company. A complete range of specifications of UV Lamp can meet different requirements. The series possesses ultra-high brightness, long working hours and stable quality etc., and it conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).

The National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015) requires Black Light Lamp / Ultraviolet Lamp as follows:

  1. Exposure intensity on the workpiece surface must be greater or equal to 1000 uW/cm².
  2. The wavelength should be 315nm~400nm, and the peak value wavelength should be 365nm.
  3. Light source should meet the specification of GB/T5097.

2.Technical Parameters



Model



DG-30
Lamp Beads NICHIA 365nm Ultraviolet band LED Lamp Beads
Lamp Bead Amount 1
Input Voltage 3.7-4.2V
Output Power 3W
Intensity of Ultraviolet Ray at 38cm Distance

≥13000

uW/cm2

Irradiated Area at 38cm Distance ¢45mm
Diameter of Light Inlet Window ¢34
Battery Model ICR 26650
Battery Capacity 4800mAh
Number of Battery 1
Charging Time ≥6H
Working Hours ≥5H
Battery Life More than 500 time for fully charge and discharge
Outline Dimension A ¢40 mm
B ¢33 mm
L 144 mm
Weight(including Battery) 240g


3. Main Application

  1. Fluorescence Penetrate Testing
  2. Fluorescence Magnetic Particle Flaw Detection
  3. Fluorescence Leak Detection

Other Application

  1. Oil Stain, Blot Testing
  2. Special Gas, Oil and Gas Pipeline Testing
  3. Fluorescence Reflection Detection for Special Materials
  4. Criminal Investigation and Legal Medical Expert Survey
  5. Paper Money Authentication, Jewel Appreciation
  6. Agriculture, Foodstuff, Medical Treatment and other relevant industries.

4. Characteristic and Performance

  1. HUATEC DG-30 adopts high-power 365nm Ultraviolet band LED Lamp

Beads produced by Japanese NICHIA company, 100% free from UV-B and UV-C element, spectrum is pure.

  1. The lifetime of Lamp Beads reach up to 20000 hours, efficient, energy conservation and environmental protection.
  2. Quick Start, can reach the maximum illuminance as soon as switch on.
  3. Ultra-low power consumption,high efficiency.Stand-by time is far more than likewise products.
  4. Cold light source makes cold operation, outputs the illuminance lasted and steadily.
  5. Optical filter is black vitaglass.
  6. High strength aviation aluminum alloy shell with anodize surface.
  7. Enhance thermal design, can be used continuous for long time.
  8. Configure dedicated high speed charger for each lamp.
  9. Anti magnetic field interference function makes it possible to work in the strong magnetic field.
  10. Dust prevention and waterproof standards reach IEC 60529- IP66 grade, suit to different environments, more safety and reliable.

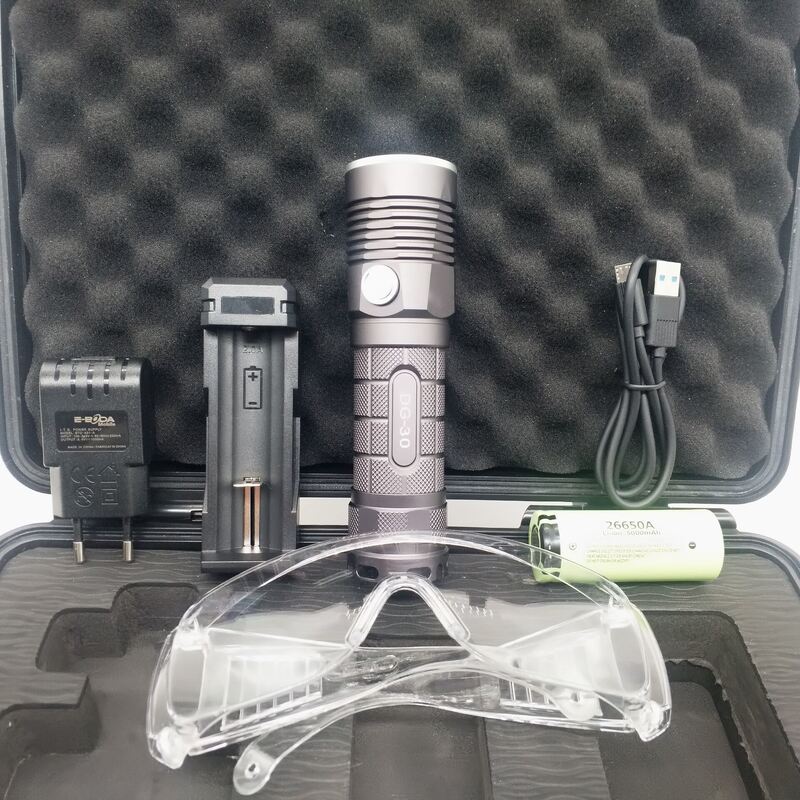

5. Configuration List


DG-30
Main Device 1
Battery 1

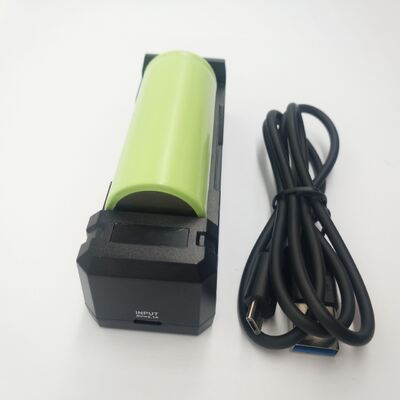

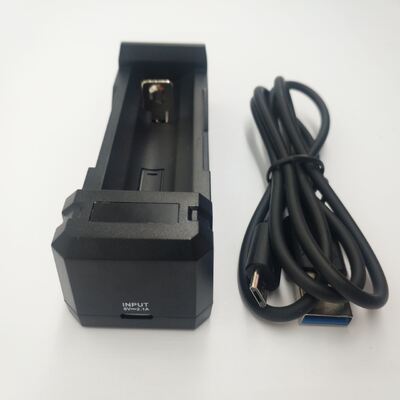

Charger 1

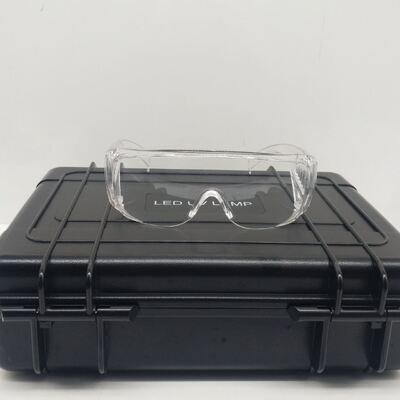

Suit case 1
Operating Manual 1
Certification 1
Warranty Card 1
Packing List 1


Optional Configuration

Pocket LED Ultraviolet Torch Lamp Long Working Hours and Stable Quality 0Pocket LED Ultraviolet Torch Lamp Long Working Hours and Stable Quality 1
