제품 상세 정보:
|
| 매개변수: | 속도 | 정확성: | ±5% |
|---|---|---|---|
| 표시하다: | 3 1/2 디지트 LCD | 전원공급장치: | 2개의 버튼 배터리(LR44 또는 SR44) |
| 배터리 용량: | 대략. 4.5시간 연속 근무 | 습기: | <85% |
| 강조하다: | pen type vibration meter,motor failure detecting meter,velocity vibration testing equipment |
||

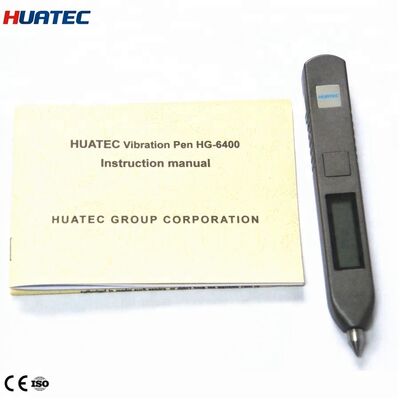

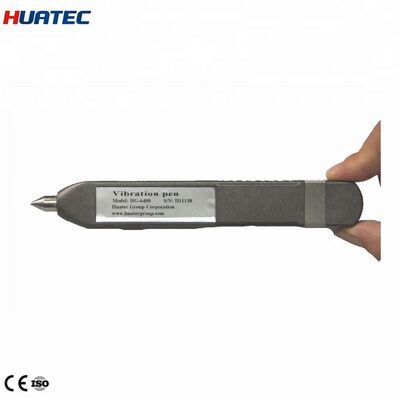

Pen Type Vibration Meter Motor Failure Detecting Velocity Vibration
Features:
·Used for fast failure detecting of motor, electric fan, pump, air compressor, machine
tools and so on.
·Compact size, small weight, easy handling
·Prompt testing of vibration on the workshop machines
·For quick checking of unbalance misalignment, bearings and gears
·Guard against mechanical malfunction
·Holding tested value for 40 seconds
·Automatic switch off after 40 seconds
Technical Specifications:
| Parameter | Velocity |
|
Testing range |
Velocity: 0.1mm/s-199.9 mm/s(RMS) |
|
Frequency range |
Velocity: 10Hz ~ 1kHz |
| Accuracy | ±5% |
| Display | 3 1/2 digits LCD |
| Power supply | two button batteries(LR44 or SR44) |
| Battery capacity | Approx. 4.5 hours working continuously |
| Operating temperature | 0℃ ~ 40℃ |
| Humidity | <85% |
| Dimension | 150mm×22mm×15mm |
Standard delivery
• Main unit
• Battery
• Protection pocket
• Certificate
• Instruction manual
• Warranty card
![]()
![]()
![]()
