제품 상세 정보:
|
| 제품명: | 방사선 콜리메이터 | 모델: | TCN799 |
|---|---|---|---|
| 강조하다: | Tungsten collimators for NDT,Gamma-ray projector collimators,XR accessories TCN799 collimators |
||

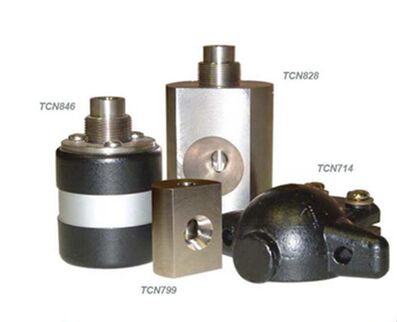

XR Accessories Tungsten Collimators TCN799 for NDT Gamma-Ray Projectors
GAMMA RAY COLLIMATORS
Collimators contain and direct the beam of radiation during exposure. A wide range of collimators have been developed to meet the variety of applications and techniques used.
COLLIMATORS
|
DESCRIPTION |
WEIGHT |
BEAM SIZE |
ATTENUATION |
HALF VALUE LAYERS |
ITEM NO. |
|
Tungsten |
1.75Ib (0.79kg) |
60°Conical,side throw |
Ir-192:0.05 Co-60:0.46 |
Ir-192:4.30 Co-60:1.12 |
TCN799 |
|
|
4.3 Ib (1.95kg) |
60°Conical,side throw |
Ir-192:0.009 Co-60:0.26 |
Ir-192:6.80 Co-60:1.90 |
TCN827 |
|
|
9.5 Ib (4.32kg) |
60°Conical,side throw |
Ir-192:0.003 Co-60:0.17 |
Ir-192:8.30 Co-60:2.50 |
TCN828 |
|
|
4.3 Ib (1.95kg) |
20°x360°panoramic |
Ir-192:0.0045 Co-60:0.18 |
Ir-192:7.80 Co-60:2.40 |
TCN846 |
|
Lead |
3 Ib (1.36kg) |
60°Conical,side throw |
Ir-192:0.014 Co-60:0.32 |
Ir-192:6.20 Co-60:1.70 |
TCN714 |
|
Large Lead Collimator |
3 Ib (1.36kg) |
60°Conical,side throw |
Ir-192:0.014 |
Ir-192:6.20 |
TCN717 |
|
Lead Colliator with |
32 Ib (14.5kg) |
20°x360°panoramic 60°directional |
Ir-192:0.001 Co-60:0.10 |
Ir-192:10.0 Co-60:3.30 |

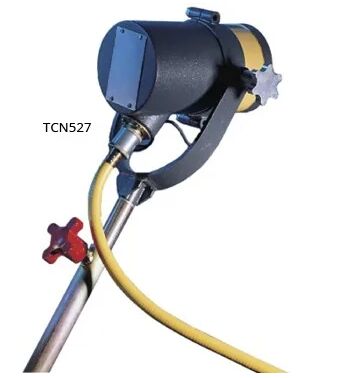

TCN527 |
|
527 Collimor Only |
32 Ib (14.5kg) |
20°x360°panoramic 60°directional |
Ir-192:0.001 Co-60:0.10 |
Ir-192:10.0 Co-60:3.30 |
52710 |
|
360° Panoramic Inseit |
|
20°x360°panoramic |
|
|
52704 |
|
60° Directional Insert |
|
60°directional |
|
|
52711 |
