제품 상세 정보:
|
| 들여 쓰기: | 볼 Φ5mm | 디스플레이 범위: | 0-100H (강도 점진 표시) |
|---|---|---|---|
| 테스트 범위: | 10-90H(경도눈금) | 해결: | 0.1H |
| 정확성: | ≤±1H | 테스트 압력: | 대략. 12.5N |
| 스프링 힘 측정: | 0.55-8.065N | 스케일 직경: | 51mm |
| 운영: | 온도:0~40°C 습도:<80%RH | ||
| 강조하다: | Textile winding density tester,Warp durometer with convertible probe,Non-destructive textile testing equipment |
||

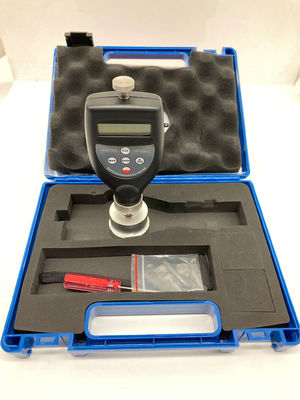

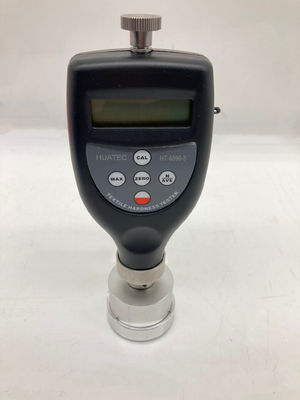

HT-6590-5 Textile Winding Density Tester Warp Durometer with Convertible Probe
Features
* Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm.
* With average calculate, peak value deposit function.
* Apply USB data output to connect with PC.
* Blue tooth data output option.
| Model | HT-6590-5 | ||
| Parameters | Tested value/Mean value/Max.value | ||
| Indenter | Ball Φ5mm | ||
| Convertible Probe | The curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the plane end of the probe is suitable for the bobbin with a diameter greater than 400mm | ||
| Area Of Application | For loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads | ||
| Display Range | 0-100H (hardness graduation marks) | ||
| Testing Range | 10-90H (hardness graduation marks) | ||
| Resolution | 0.1H | ||
| Accuracy | ≤±1H | ||
| Battery Indicator | Low Battery Indicator | ||
| Auto Switch Off | √ | ||
| Depth Of Indentation | 0-2.5mm | ||
| Test Pressure | Approx. 12.5N | ||
| Measuring Spring Force | 0.55-8.065N | ||
| Scale Diameter | 51mm | ||
| Working Face Radius | 55mm (when using the curved end of the probe) | ||
| Working Face Flat | 45mmΦ (when using the plane end of the probe) | ||
| Operating | Temperature:0~40ºC Humidity:<80%RH | ||
| Power Supply | 2x1.5V AAA(UM-4)Battery | ||
| Dimensions | 177x65x45mm | ||
| Weight | Approx. 285g (Not including batteries) | ||

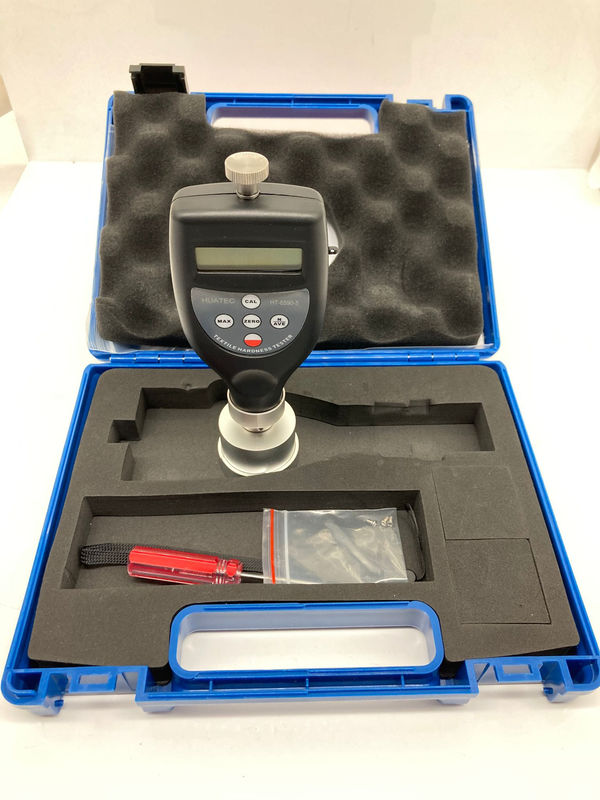

| Standard Accessories | Main Unit | ||
| Carrying Case | |||
| Operation Manual, calibration certificate | |||
| Optional Accessories | USB Data Cable with Software | ||
| Blue tooth Data Adapter with Software | |||
Principle
The principle used to measure textile hardness is based on measuring the resistance force of the penetration of a ball against the spool under a known spring load. The measuring principle is the same as the Shore A hardness testing.
Application
To measure the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages etc.
Indenter ball 5mm is for loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads
