제품 상세 정보:
|
| 관전압(kVp): | 160KV | 필라멘트 특성(v): | 나는 fmax=4.5A, Uf=5±1 |
|---|---|---|---|
| 대상 각도: | 25° | 최대 연속 방열(w): | 500 |
| 명목상 초점 스포트값: | 0.8 | 고유여과(mmAl): | 1.0 |
| 강조하다: | 160KV X-ray tube for security scanners,0.8mm focal spot X-ray tube,500W X-ray tube for flaw detectors |
||

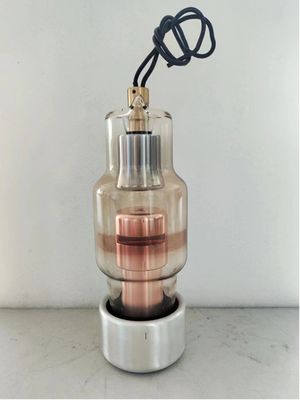

HXC-16B X-ray Tube 0.8mm Focal Spot 160KV 500W for Security Scanner & Flaw Detector
APP’LICATION:
It is mainly used for security inspection X-ray machine and industry x ray flaw detector also.
It is designed for main applications used in x-ray equipment Heimann Smith for security check
TECHNICAL DATA
|
Nominal X-ray tube voltage(kv) |
Filament characteristic(v) |
target |
|
|
160 |
I fmax=4.5A,Uf=5±1 |
material |
angle |
|
W |
25° |
||
|
Maximum continuous heat dissipation (w) |
Nominal focal spot value |
Weight(kg) |
Inherent filtration(mmAl) |
|
500 |
0.8 |
≤2 |
1.0 |
