제품 상세 정보:
|
| 어댑터 입력 전압: | 85-264VAC/47-60Hz 권력 : 200W | 최대 광 인텐서티: | >100,000cd/㎡ |
|---|---|---|---|
| 막 밀도: | >4.0D 검사 보고서에 따릅니다 | 표면 온도: | <18°C (24시간 미만 연속 작업) |
| 획일적 시청 영역: | 95% 풀 스크린 | 측정 범위: | 0.00-5.00D |
| 영상 표시기: | 4비트 LCD | 제어 모드: | 설명서 + 발 스위치 |
| 냉각 방식: | 강제 공기 냉각 | ||
| 강조하다: | LED industrial film viewer,NDT inspection densitometer,built-in densitometer film viewer |
||

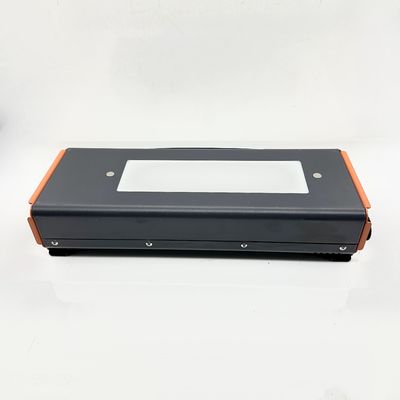

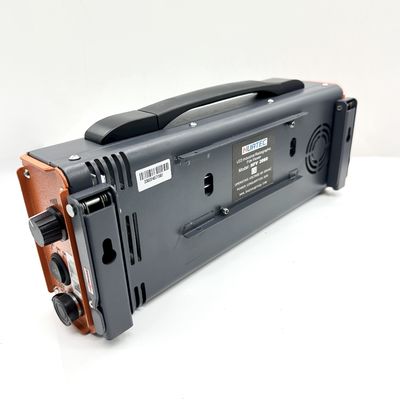

HFV-3010M LED Industrial Film Viewer with Built-in Densitometer for NDT Inspection
Features:
Maximum Light Intensity: >100,000cd/㎡
Easily View >4. 0 Density
Pure White LED Light
50,000 Hour Lamp Life
Low Power Consumption
Fan cooling
Foot Switch
Uniform Viewing Area: 98% Full Screen
Dimmer Control: 0% to 100% continuous
Surface temperature: <18°
Built-desktop stand
Design: Modern, Stylish and Simple
Power Requirements: 85-264VAC/47-60Hz
Specifications:
|
MODEL: |
HFV-3010M |
|
Pecifications: |
|
|
Measuring range: |
0.00-5.00D; |
|
Measurement accuracy: |
±0.05D; |
|
Calibration scope: |
arbitrary value; |
|
Visual display: |
4-bit LCD; |
|
Optical frequency sensor: |
American TAOS sensor; |
|
Probe dimension: |
diameter is 3mm; |
|
Power supply: |
built-in 3200mA lithium battery; |
|
Specifications: |
|
|
Adapter Input voltage: |
85-264VAC/47-60Hz |
|
Power: |
120W |
|
Maximum Light Intensity: |
＞100, 000Cd/㎡ |
|
Surface temperature: |
<18° Celsius (Continuance working 24 hours under) |
|
Uniform Viewing Area: |
95% Full Screen |
|
Dimmer Control: |
0% to 100% continuous |
|
Control mode: |
Manual + Foot-switch |
|
Cooling Method: |
Forced air cooling |
|
Dimensions: |
530mm*60mm*155mm (L*W*H) |
|
Substrate-mask window: |
220mm*80mm (L*W) |
|
Packing dimensions: |
60cm*24cm*18cm |
|
Weight: |
6.5. 0KG |
Package Contents:
LED viewer with densitometer HFV-3010M 1pc
Foot switch 1pc
AC power cord 1pc
Viewing mask 1pc
Magnetic film holder 2pcs
Magnetic ruler 1pc
User's manual 1pc
Calibration certificate 1pc
Trouble shooting Cause of the fault:
The power light is not on Elimination method: Check the power switch (8) to see if it is on the position of the foot switch, if is, should use in the foot switch mode. Check the lightness adjustment knob on the right-side control penal to see if it is on the minimum position, it is, should turn it to the proper lightness in the clockwise.
