제품 상세 정보:
|
| 달리기 시간: | 6분~15분(10개 파일 조정 가능) | 필름의 최소 크기: | 폭 5~10cm~35cm |
|---|---|---|---|
| 개발 시간: | 90~210초 | 필름 속도: | 90 mm/min (실행시간은 6분) |
| 건조 온도: | 65 도 | 수온: | 5~30도 |
| 전력 소비: | 220~240V6A 50 또는 60Hz | ||
| 강조하다: | NDT film developing machine auto reflux,mobile NDT film developer,auto chemical reflux film processor |
||

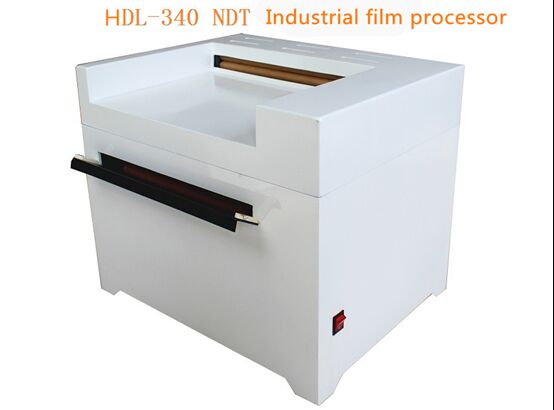

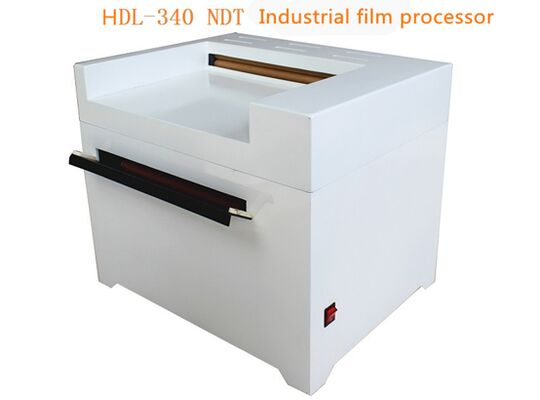

HDL-340 Mobile NDT Film Developing Machine with Auto Chemical Reflux
The advantages of HDL-340 NDT industrial film processor are:
Compact design, small space occupation, suitable for mobile operation;
Professional design: Developing the tablet when the tablet machine is not working, fixing the film automatically reflux to the storage tank and isolate it from the air, so as to ensure the service life of the liquid medicine, and prevent the liquid medicine mixing cylinder from scrapping during the vehicle running; the liquid medicine automatically rises to the designated working liquid level when the tablet machine is working to ensure the film. The quality of flushing can be guaranteed by eliminating the need for the traditional washing machine to pass the replenishment liquid.
Developing, fixing, drying axle frame system using integrated design: axle frame display, fixing, drying cadres in precise positions, film development will not produce scratches; no matter how the operation can ensure smooth film development will not produce cards, beginners can be competent to operate;
Pipeless design: Special circulating pump is used to ensure the circulation of the liquid medicine, which eliminates the complicated pipeline design of the traditional film-making machine and will not block the pipeline for a long time.
| minimum size of the film | 5 to 10 centimeters to 35 centimeters wide |
| running time | 6 minutes -15 minutes (10 files can be adjusted) |
| film speed | 90 mm / min (running time is 6 minutes) |
| Development time | 90-210 seconds |
| volume of each tank | 6 litres (each dosage) |
| Development temperature | adjusted from 23-35 degrees |
| Fixing temperature | automatically adjusted according to developing temperature |
| drying temperature | 65 degrees |
| Water temperature | 5~30 degrees |
| Water consumption film runs | 1.6 litres / min (Flushing film), or waterless circulation design |
| Power | 220~240V6A 50 or 60Hz |
| Weight | 38 kg (no liquid in tank) |
| Volume (length * width * height) | 41 x 52 x 42 PCT |
