제품 상세 정보:
|
| 필름 크기: | Minimum: 50×100mm, Max. 최소: 50×100mm, 최대. Width: 450mm 폭: 450mm | 처리 시간: | 3.2～16min. 3.2~16분 （0.1min. （0.1분. adjustable） 조절할 수 있는) |
|---|---|---|---|
| 공급 속도: | 155~765mm/분. | 탱크 용량: | Dev. 개발. Fix. 고치다. Wash.13L for each 각 세탁.13L |
| Dev. 개발. Temp. 온도: | 20~40℃(0.1℃ 조정 가능) | 건조온도: | 20~70℃(5℃ 조정 가능) |
| 전력 소비: | 110~240V 10A, 50 또는 60Hz | ||
| 강조하다: | automatic NDT X-ray film processor,industrial film developing machine 450mm,X-ray film processor with warranty |
||

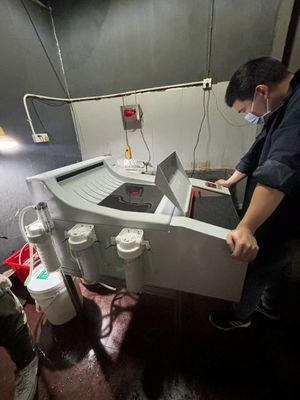

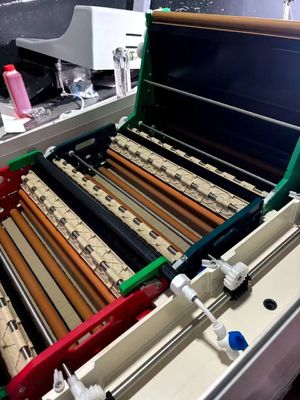

HDL-430D Automatic NDT X-ray Film Processor 450mm Wide Industrial Film Developing Machine
The machine is widely used in the quality inspection of boilers, shipbuilding, pressure vessels, oil and gas pipeline construction, aerospace and other equipment, and is widely praised by customers in the testing industry!
|
Specification |
Model: HDL-430D |
|
Film Size: Minimum: 50×100mm, Max. Width: 450mm Film Type: roll orflat film Film probes: 4 sets of micro inductive probes Processing Time: 3.2～16min. (0.1min. adjustable) Feed-in Speed:155～765 mm/min. Processing Capacity: 350×430mm 22-109 sheets/hr,80×300mm 110-545 sheets/hr (when 5.4 min processing time) Tank Volume: Dev. Fix. Wash.13L for each Supplementary: automatically replenish water according to film size,waterreplenishment 50～700ml/㎡ Dev. Temp.: 20～40℃ (0.1℃ adjustable) Fix. Temp.:automatically adjustable Dry Temp.: 20～70℃ (5℃ adjustable) Water Temp.: 5～30℃ Washing Controlling: when working: automatic water intake less than2L/min, standby: automatic shutdown Power Consumption:110～240V 10A, 50 or 60Hz Weight: G.W: 128kg, N.W: 88kg Dimension: appr.: 108×71.5×113cm3 |
