제품 상세 정보:
|
| 제품명: | 표면 거칠기 시험기 | 모델: | SRT-7000 |
|---|---|---|---|
| 기준: | ISO, ANSI, DIN, JIS | 샘플링 길이 (lr): | 0.25, 0.8, 2.5mm |
| 강조하다: | surface roughness tester with printer,high precision profile tester,non destructive testing equipment 22 parameters |
||

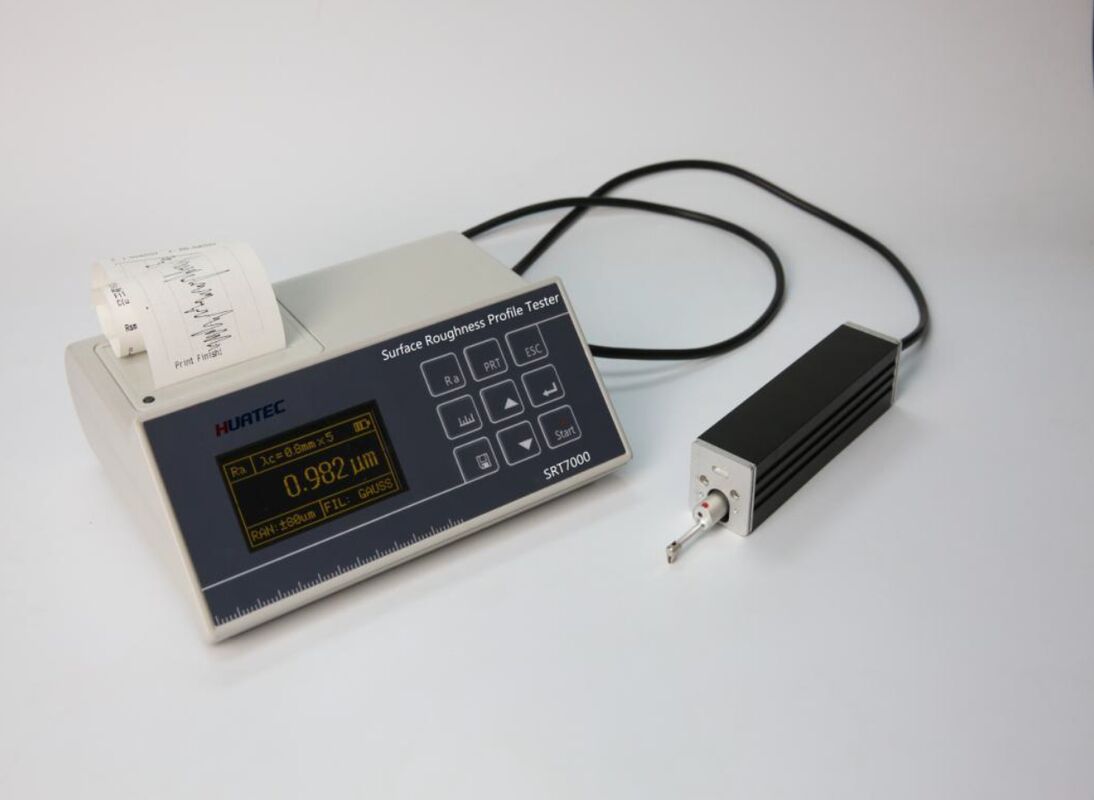

High Precision Surface Roughness Profile Tester 22 Parameters Inbuilt Printer
Product Description
Precision roughness tester SRT7000 is a high precision instrument to test the surface degree of finish. It can measure surface roughness of the machined parts, including plane, bevel, outer cylindrical, surface, holes, trenches and axles and so on.
Features
◎Sensor and main unit are separated, to meet different demands of test
◎Use DSP chip to control and process data, with high speed and low power consumption
◎Compatible with ISO, DIN, ANSI, JIS multiple national standards
◎Continuous working time more than 20 hours
◎Large-capacity data storage, can store 100 groups of raw data and waveform.
◎Thermal printer and instrument are integrated as a whole, quiet work, rapid print, you can print the contour curve and ratio curve of the material.
◎Real-time clock setting and display for easy data recording and storage.
◎With automatic sleep, automatic shutdown and other power-saving features
◎Reliable circuit and software design to prevent the motor stuck.
◎Instrument can display a variety of information tips and instructions. For example Measurement result display, the menu prompts, error messages, and switches.
◎English language selection.
◎Can connect to the computers
◎Print all the parameters or any parameter set by the user.
◎Optional curved surface sensor, holes sensors, measuring platform, sheath of sensor, extension rod and other accessories.
Measuring Range
| Parameter | Indicating Range |
| Ra, Rq | 0.005μm~16μm |
| Rz, R3z, Ry, Rt, Rp, Rm | 0.02μm~160μm |
| Sk | 0~100% |
| S, Sm | 1mm |
| tp | 0~100% |
Technical Parameters
| Name | Content | |
| Measuring Range | Z-axis (vertical) | 160μm |
| X-axis (horizontal) | 17.5mm | |
| Resolution | Z-axis (vertical) |
0.01μm/±20μm 0.02μm/±40μm 0.04μm/±80μm |
| Measuring Items | Parameters |
Ra Rz==Ry(JIS) Rq Rt==Rmax Rp Rv R3z R3y Rz(JIS) Rs Rsk Rku Rsm Rmr Rpc, Rk, Rpk, Rvk, Mr1, Mr2 |
| Standard | ISO, ANSI, DIN, JIS | |
| Graph | Supporting curve, roughness profile, direct contour | |
| Filter | RC, PC-RC, Gauss, D-P | |
| Sampling length (lr) | 0.25, 0.8, 2.5mm | |
| Evaluation length (ln) |
Ln=lr×n n=1~5 |
|
| Sensor | Measuring Principle | displacement differential inductor |
| Stylus | Natural diamond, 90 cone angle, 5μm tip radius | |
| Dynamometer | <4mN | |
| Guide head | Carbide, the sliding direction radius 40mm | |
| Sliding Speed |
lr=0.25, Vt=0.135mm/s |
|
| lr=0.8, Vt=0.5mm/s | ||
| lr=2.5, Vt=1mm/s | ||
| Return, Vt=1mm/s | ||
| Indicator Error | no more than ±10% | |
| Indication Fluctuation | no more than 6% | |
| Power | Built-in lithium-ion rechargeable battery, charged by DC5V, 800mA charger | |
| Dimension | 158×63.5×46mm | |
| Weight | About 300g | |
| Operation Environment |
Temperature: -20℃~40℃ Humidity: <90%RH |
|
| Storage and transportation environment |
Temperature: -40℃~60℃ Humidity: <90%RH |
|
Standard Configuration
Roughness Tester SRT7000
Standard Sensor
Multi-groove standard specimen
Adjustable bracket
Power Adaptor
Instructions
Certificate
Warranty Card
PC Software
Optional accessories:
Sensor for curve/concave/groove surface, hole sensor, measuring platform, extension rod, calibration plate.
