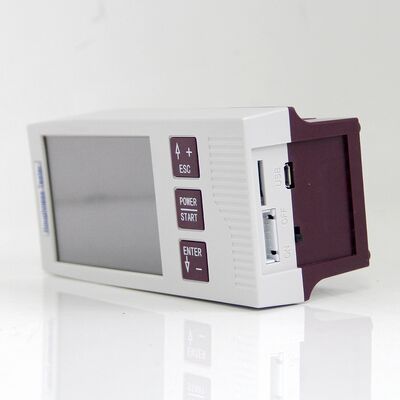

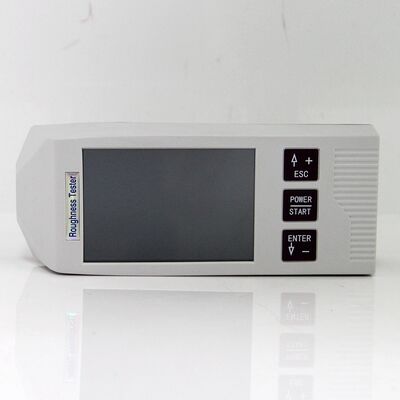

Color graphics LCD display 22 parameters TFT Touch Screen Surface Roughness Tester
Main Features
Technical parameters
| Measuring Range | The Z axis (vertical) | ±80μm/±160 µm(enhanced model) | |
| The X axis (Transverse) | 20mm | ||
| Resolution | The Z axis (vertical) | 0．01μm/±20μm | |
| 0．02μm/±40μm | |||
| 0．04μm/±80μm | |||
| 0．08μm/±160μm | |||
|
22 Parameters
|
Ra,Rz,Rq,Rt,Rp,Rv,R3z,R3y,Rz(JIS),Rs,Rsk,Rsm,Rku,Rmr,Ry(JIS), Rmax, RPc, Rk, Rpk, Rvk, Mr1, Mr2) | ||
| Graphic | Bearing area curve, Roughness profile, Primary profile | ||
| Filter | RC,PC-RC,Gauss,D-P | ||
| The sampling length(lr) | 0.25, 0.8, 2.5mm | ||
| Assessment length(ln) | Ln= lr×n n=1~5 | ||
| Sensor | Measuring method | skidded | |
| Stylus tip | Diamond, 90 cone angle, 5μmR | ||
| Force | <4mN | ||
| Skid part | hard alloy, skid radius of curvature: 40mm | ||
| Traversing speed | lr=0.25, Vt=0.135mm/s | ||
| lr=0.8, Vt=0. 5mm/s | |||
| lr=2. 5, Vt=1mm/s | |||
| Return Vt=1mm/s | |||
| Accuracy | Less than ±10% | ||
| Repeatability | Less than 6% | ||
| Power supply | Built-in Lithium ion battery, Charger :DC5V,800mA | ||
| Outline dimension | Main unit: 64*53*160mm drive: 23*27*115mm | ||
| Weight(main unit) | Around 380g | ||
| Working Environment |
Temperature: - 20℃ ~ 40℃ Humidity: < 90% RH |
||
| Store and Transportation |
Temperature: - 40℃ ~ 60℃ Humidity: < 90% RH |
||

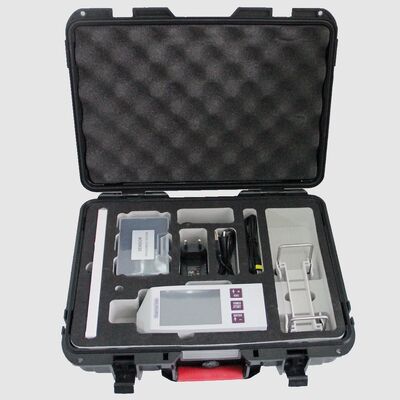

Standard Delivery
| ITEM | QTY |
| SRT6680 Host | 1 PC |
| Sensor TS110 | 1 PC |
| Calibration block and bracket | 1 PC |
| Bracket for Calibration Block | 1 PC |
| Height adapter | 1 PC |
| Power Charger & USB Cable | 1 PC |
| PC Software | 1 PC |
| User manual | 1 PC |
| Instrument case | 1 PC |
| Warranty | 1 Year |
