제품 상세 정보:
|
| 인증: | CE | 측정 장치: | 음/우인 |
|---|---|---|---|
| 해결: | 0.01 um | 정확성: | ±10% |
| 제품명: | 표면 거칠기 시험기 | 포장 치수: | 200mmx130mmx80mm |
| 강조하다: | pocket surface roughness tester,portable touch screen roughness tester,surface roughness tester with warranty |
||

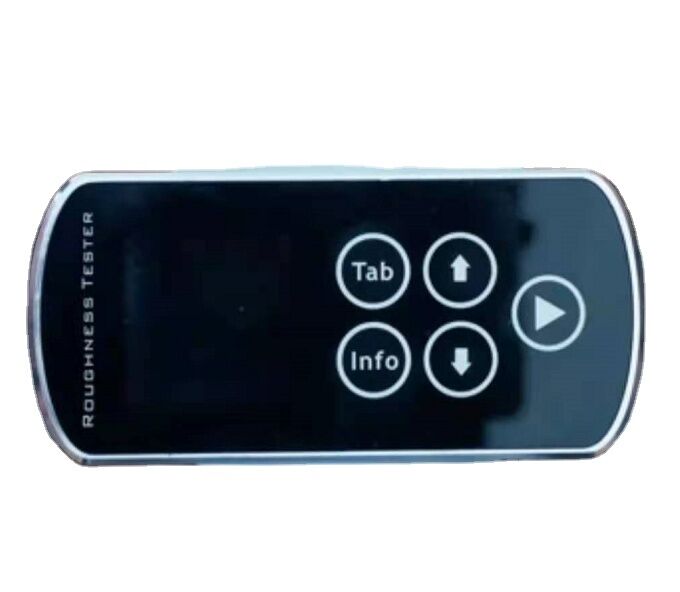

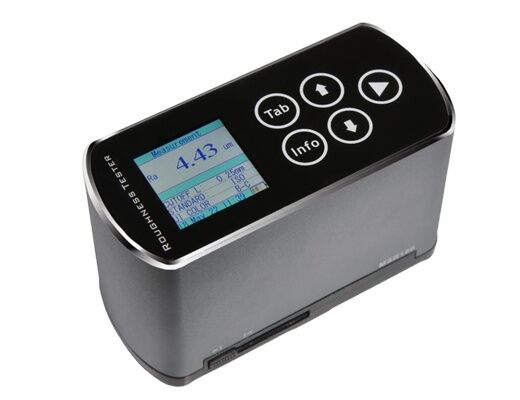

Pocket Touch Screen Portable Surface Roughness Tester
Features
Working Interface
Parameter
| Parameters | Ra, Rz, Rq, Rt | |
| Range | Ra, Rq 0.05-20um | |
| Rz ,Rt 0.1-50um | ||
| Accuracy | ±10% | |
| Resolution | 0.01um | |
|
Probe
|
Type | Piezoelectric |
| Stylus radius/angle | 10um/90° | |
| Stylus material | Diamond | |
| Measuring Force | 5mN | |
| Measuring Unit | Um/uin | |
| Cut off | 0.25mm/0.8mm Auto | |
| Assessment Length | 4 x Lamda | |
| Traverse speed | 0.75mm/s | |
| Power | Built-in Rechargeable battery | |
| Instrument Dimension | 90mmx42mmx54mm | |
| Weight | 210g | |
| Packing Dimension | 200mmx130mmx80mm | |
| Total Weight | 530g | |
Standard Delivery
l Main unit
l Calibration block
l AD/DC adapter and data line
