제품 상세 정보:
|
| 감광도: | A1형 표준 테스트 필름 15/100 홈이 선명하게 표시되어 국가표준보다 우수합니다. | 리프팅 힘: | AC ≥68.6N(7kg) |
|---|---|---|---|
| 프로브 극 거리: | 60mm-205mm (간격 범위는 조정 가능) | 프로브 광원: | 백색광 조도 ≥2000Lux; UV 램프 조도 ≥5000μw/c㎡ |
| 프로브 볼륨: | 200mm * 48mm * 158mm | 프로브 무게: | 2.0KG |
| 강조하다: | handheld magnetic yoke NDT inspection,dual lamp UV white yoke,magnetic yoke for in-service testing |
||

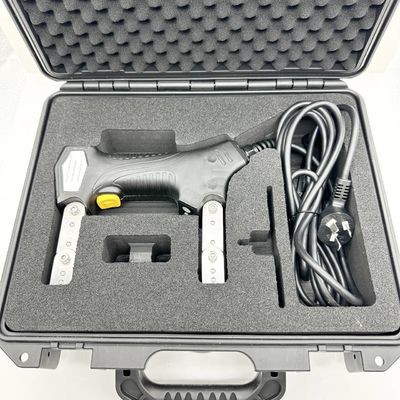

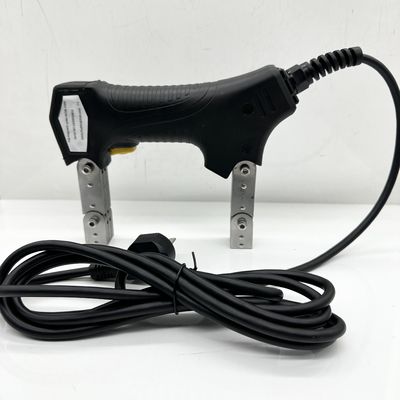

HCDX-220S Handheld Magnetic Yoke UV White Dual Lamp for NDT In-Service Inspection
Application
•Surface and subsurface testing for field testing
•Surface and subsurface for spot inspections
•Surface and subsurface for in-service inspections
•Surface and subsurface for demanding environments
•Surface and subsurface for weld inspection
Technical parameter
| Sensitivity | A1 type standard test film 15/100 grooves display clearly, better than the national standard |
| Lifting force | AC ≥68.6N (7kg) |
| Probe pole distance | 60mm-205mm (spacing range is adjustable) |
| Probe light source |
white light illuminance ≥2000Lux; Uv lamp irradiance ≥5000μw/c㎡ |
| Probe volume | 200mm*48mm*158mm |
| Probe weight | 2.0kg |
Functional characteristics
1. AC working mode, the probe can be directly connected to the AC220V power supply for flaw detection work;
2, The lamp is automatically lit when magnetized, the UV and white light can be switched, and the fluorescent magnetic particle detection and ordinary magnetic particle detection can be performed;
3, High sensitivity, strong lifting force, high flaw detection efficiency.
4. Duty time: 5 minutes on,1 minute off
5. Sealed, durable construction
Standards conform
• ASME BPVC
• ASTM E709
• ASTM E1444
• ASTM E3024
• ISO 9934-3
Configuration list
1, D type yoke 1 set (including 3 meters probe line)
2. 1 set of auxiliary tools
3, User manual, warranty card, certificate of 1
4, Instrument box
