제품 상세 정보:
|
| 검출기 범위: | 9V ——300μm;67.5V—500μm;90V——500μm | 감광도: | 9V——90KΩ+5% ;67.5V—125KΩ+5% ;90V——400KΩ+5% |
|---|---|---|---|
| 전압의 정확도: | +5% | 배터리: | 리튬폴리머 충전지 11.1V/1100mA |
| 힘: | 0.5W 이하 | 전압 표시: | 각 전압에 대한 LED 표시 |
| 배터리 충전: | 12VDC 충전기 | ||
| 강조하다: | portable pinhole detector for insulation,multi-voltage leak testing detector,insulating coating pinhole detector |
||

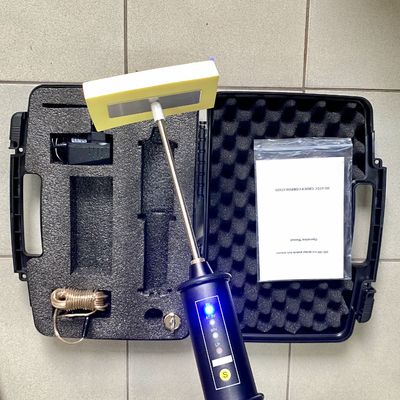

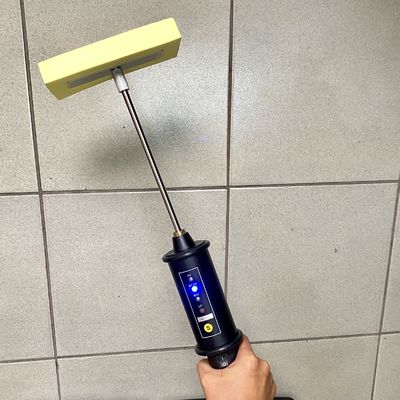

Utilizes the wet sponge technique and has been designed to set a new standard for wet sponge detectors - a high quality, low voltage detector with similar accessories to a high voltage spark tester.
| Attribute | Value |
|---|---|
| Detector range | 9V ——300µm; 67.5V—500µm; 90V——500µm |
| Sensitivity | 9V——90KΩ+5%; 67.5V—125KΩ+5%; 90V——400KΩ+5% |
| Accuracy of voltage | +5% |
| Battery | Li-pol rechargeable battery 11.1V/1100mA |
| Power | ≤0.5W |
| Weight main unit | 500g |
| Size | 290×53×53mm |
| Voltage indication | LED indication for each voltage |
| Battery charging | 12VDC charger |
| Sponge size | 170×70×30mm |
| Detecting rod length | 195mm |
| Earth wire length | 4m |
