제품 상세 정보:
|
| 탐지기: | 에너지 보상 GM 튜브 검출기 | 선량율: | 10μSv/h |
|---|---|---|---|
| 전력 소비: | 2mW 미만 | 온도: | -20°C 이하--+50°C 이하 |
| 습기: | 0~95%RH(+35℃) | 오류: | ≤±10% |
| 강조하다: | personal radiation sounder dosimeter,gamma radiation monitor X detector,portable radiation dosimeter with warranty |
||

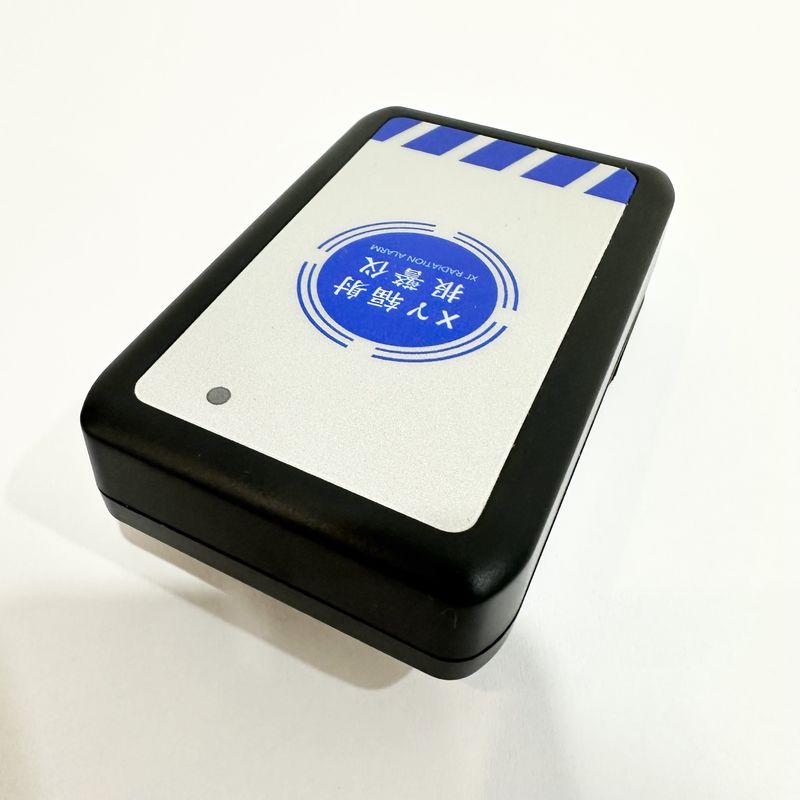

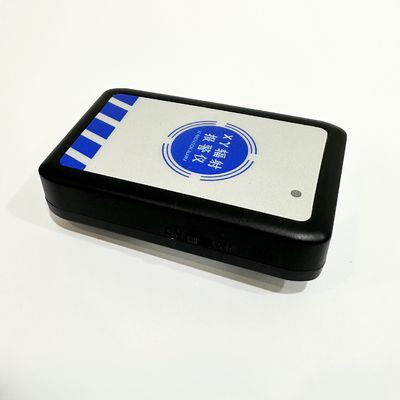

FJ-F100 Personal Radiation Sounder X Gamma Radiation Monitor Dosimeter
Product introduction
The FJ-F100 Personal radiation Sounder is a wearable personal monitor used to measure the intensity of X and gamma radiation fields, and is used for radiation monitoring of workers in the fields of isotope application, gamma irradiation, X and gamma ray nondestructive testing, X-ray diagnosis, accelerator and cobalt source therapy. Due to its high sensitivity, the instrument is also responsive to ambient background radiation. The instrument indicates the level of radiation in a person's place by the frequency of sound and flash. Because of its low power consumption, small size and low cost, the instrument has been widely used. The instrument has passed the ministerial technical appraisal.
Technical parameter
| Detector | Energy compensated GM tube detector |
| Applicable radiation field and measuring range | Suitable for X and γ radiation field, maximum permissible dose rate 10μSv/h. |
| Power consumption | The power consumption is less than 2mW, using two No. 7 batteries. Up to 700 hours of continuous use. |
| Product size | 88mm(H)× 57mm(W)×29mm (D) |
| Weight | bare 65g |
| Temperature and humidity characteristics |
under -20℃--+50℃, error ≤±10%; At 35℃, humidity 0-95%RH (+35℃) error ≤±10% |
Application scenario
It is suitable for protection and personal dose monitoring of workers in industrial non-destructive testing, isotope application, nuclear industry, hospital, railway, civil aviation, environmental protection and other radioactive application fields.
Performance characteristics
Highly sensitive detector, also suitable for environmental background.
Strong anti-interference ability
Sets the alarm threshold to detect sudden radiation hazards
The instrument has a back clip for easy carrying when working
Alarm function: audible and visual alarm, undervoltage alarm, optional vibration version.
