제품 상세 정보:
|
| 표시하다: | 가속도, 속도 또는 변위를 위한 3 1/2자리 디스플레이 | 가속도(@30m/s2 pk): | 40Hz ~ 320Hz + 0.3dB + 1자리;20Hz ~ 1280Hz + 0.5dB +1자리 |
|---|---|---|---|
| 속도( @25mm/sec pk): | 40Hz ~ 320Hz +0.5dB +1자리 | 변위(@50μm pk-pk): | 40Hz에서 320Hz + 0.5dB + 1자리 |
| 온도: 작동: | 0oC ~ 50oC | 저장: | -20 oC ~ 70 oC |
| 힘: | 220Vac(110Vac 옵션) | ||
| 강조하다: | portable vibration calibrator digital display,high precision shaker calibrator,vibration calibrator non destructive testing |
||

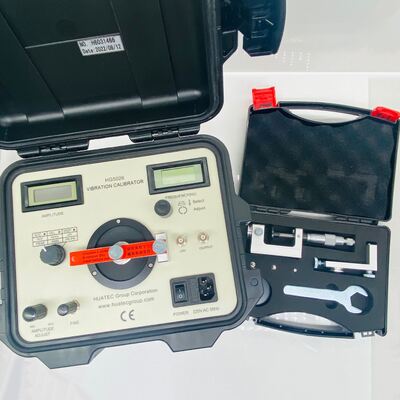

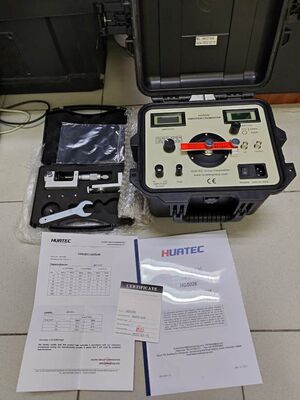

HG-5026 Portable High Precision Vibration Calibrator Digital Display Shaker Calibrator
Can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instruments. Standard sine signals at frequency 10, 20, 40, 80, 160, 320, 640 and 1280 Hz can be generated from the calibrator. It also has a socket for input from an external signal generator for any vibration frequency and even sweep signal. The amplitude of the, acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated.
HG-5020i combines sine signal generator, power amplifier, standard transducer and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.
Maximum vibration amplitude and maximum load
|
Wt Freq |
<100g | <250g | <650g | ||||||
| a(m/S2) | v(mm/S) | d(μm) | a(m/S2) | v(mm/S) | d(μm) | a(m/S2) | v(mm/S) | d(μm) | |
| 10Hz | 2.5 | 28 | 1300 | 3.5 | 40 | 1800 | 4 | 45 | 2000 |
| 20Hz | 15 | 85 | 1900 | 10 | 60 | 1300 | 5 | 28 | 640 |
| 40Hz | 60 | 170 | 2000 | 35 | 100 | 1100 | 12 | 35 | 380 |
| 80Hz | 100 | 141 | 800 | 40 | 60 | 320 | 14 | 20 | 110 |
| 160Hz | 75 | 53 | 150 | 35 | 25 | 70 | 12 | 8.5 | 24 |
| 320Hz | 50 | 18 | 25 | 30 | 10 | 15 | 10 | 3.5 | 5 |
| 640Hz | 30 | 5 | 3 | 20 | 3.5 | 2 | 6 | 1 | * |
| 1280Hz | 23 | 2 | * | 10 | 0.9 | * | 5 | 0.4 | * |
Acceleration(@10m/s2 pk) 40Hz to 320Hz + 0.3dB + 1digit
20Hz to 1280Hz + 0.5dB +1digit
Velocity ( @20mm/sec pk) 40Hz to 320Hz +0.5dB +1digit
Displacement(@50μm pk-pk) 40Hz to 320Hz + 0.5dB + 1digit
Proximity probe linearity linearity calibration kits
Prode: 5mm and 8mm probes Range: 0~2.0mm
Display: 3 1/2 digit display for velocity and frequency
Size: 300 x 250 x 210(mm) Net Weight: 6 kg
Temperature: Operation: 0oC to 50 oC Storage: -20 oC to 70 oC
Power: 220Vac (optional 110Vac)
