제품 상세 정보:
|
| 제품명: | 초음파 변환기 | 크기: | 8*9 |
|---|---|---|---|
| 빈도: | 2MHz, 4MHz | 각도: | 45° |
| 강조하다: | angle beam ultrasonic flaw detector,straight beam transducer probe,ultrasonic NDT testing equipment |
||
Angle/ Straight Beam Transducer Ultrasonic Flaw Detector Probe

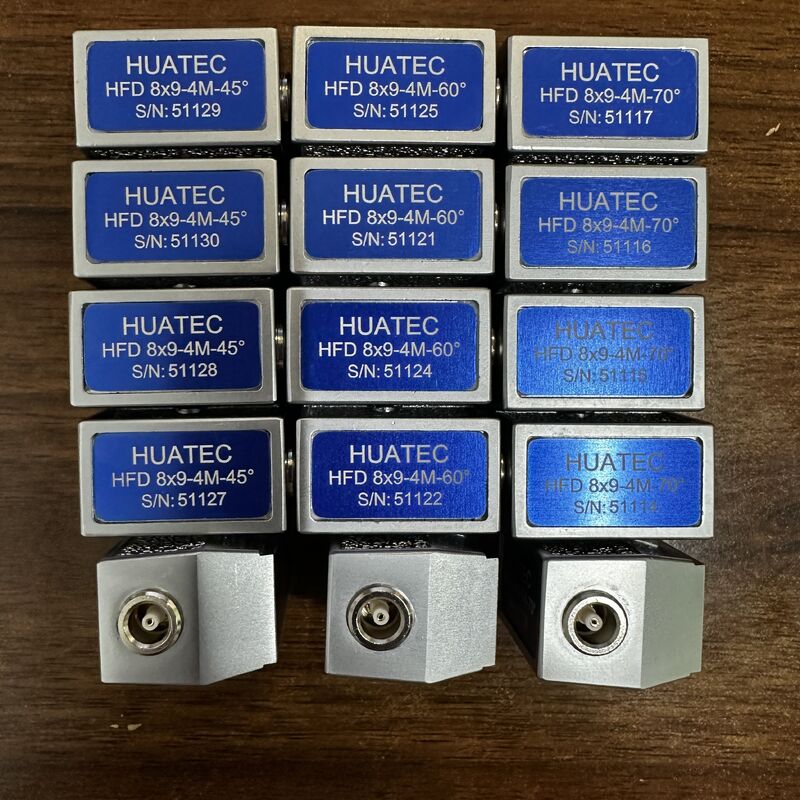

| Angle beam transducers | ||||
| Designation | Transducer Element Size(mm) | Frequency (MHz) | Angle | EXW. Price |
| HFD8X9-2M-45 | 8 X 9mm | 2 MHz | 45º | USD55 |
| HFD8X9-2M-60 | 8 X 9mm | 2 MHz | 60º | USD55 |
| HFD8X9-2M-70 | 8 X 9mm | 2 MHz | 70º | USD55 |
| HFD8X9-2M-80 | 8 X 9mm | 2 MHz | 80º | USD55 |
| HFD8X9-5M-45 | 8 X 9mm | 5 MHz | 45º | USD55 |
| HFD8X9-5M-60 | 8 X 9mm | 5 MHz | 60º | USD55 |
| HFD8X9-5M-70 | 8 X 9mm | 5 MHz | 70º | USD55 |
| HFD8X9-5M-80 | 8 X 9mm | 5 MHz | 80º | USD55 |

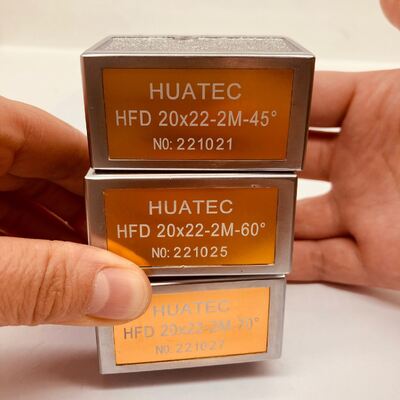

| HFD22X20-2M-45 | 22 X 20mm | 2 MHz | 45º | USD60 |
| HFD22X20-2M-60 | 22 X 20mm | 2 MHz | 60º | USD60 |
| HFD22X20-2M-70 | 22 X 20mm | 2 MHz | 70º | USD60 |
| HFD22X20-2M-80 | 22 X 20mm | 2 MHz | 80º | USD60 |

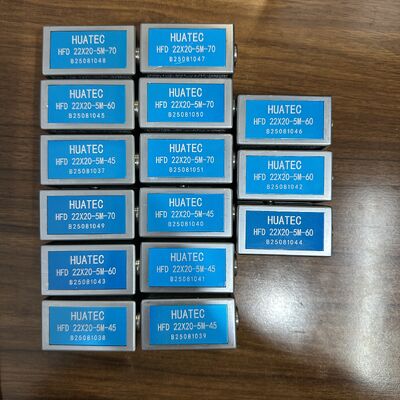

| HFD22X20-5M-45 | 22 X 20mm | 5 MHz | 45º | USD60 |
| HFD22X20-5M-60 | 22 X 20mm | 5 MHz | 60º | USD60 |
| HFD22X20-5M-70 | 22 X 20mm | 5 MHz | 70º | USD60 |
| HFD22X20-5M-80 | 22 X 20mm | 5 MHz | 80º | USD60 |
| Dual Angle Transducers | ||||
| HFD13X8-2M-60 | 13 X 8mm | 2 MHz | 60º | USD80 |
| HFD13X8-2M-70 | 13 X 8mm | 2 MHz | 70º | USD80 |
| HFD20X10-2M-60 | 20 X 10mm | 2 MHz | 60º | USD90 |
| HFD20X10-2M-70 | 20 X 10mm | 2 MHz | 70º | USD90 |
| HFD13X8-5M-60 | 13 X 8mm | 5 MHz | 60º | USD80 |
| HFD13X8-5M-70 | 13 X 8mm | 5 MHz | 70º | USD80 |
| HFD20X10-5M-60 | 20 X 10mm | 5 MHz | 60º | USD90 |
| HFD20X10-5M-70 | 20 X 10mm | 5 MHz | 70º | USD90 |
| High temp Transducers | ||||
| HFD12-1/2/3/4/5M | 12mm | 1/2/3/4/5M | 500degrees | USD379 |
| HFD14-1/2/3/4/5M | 14mm | 1/2/3/4/5M | 500degrees | USD399 |
| Optional wedge | USD189 | |||

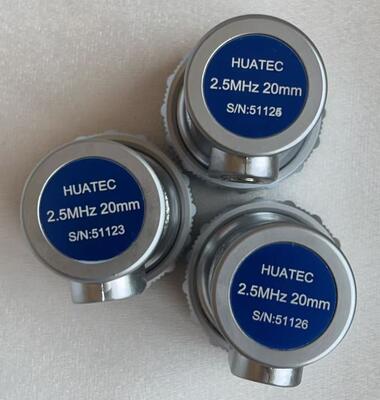

| Straight Beam Transducers | ||||
| Designation | Transducer Element Size(mm) | Frequency (MHz) | EXW. Price | |
| HFD10-2M | 10mm | 2 MHz | USD55 | |
| HFD10-4M | 10mm | 4 MHz | USD55 | |
| HFD10-5M | 10mm | 5 MHz | USD55 | |
| HFD20-2M | 20mm | 2 MHz | USD60 | |
| HFD20-4M | 20mm | 4 MHz | USD60 | |
| HFD20-5M | 20mm | 5 MHz | USD60 | |
