| 이름: | 포켓용 LED-UV 램프 | 사용: | 형광 자기 테스트 |
|---|---|---|---|
| 애플리케이션: | 산업 DNT 형광 자기 테스트 | 키워드: | 포켓용 LED-UV 램프 |
| 강조하다: | handheld LED-UV lamp for NDT,dual AC DC UV inspection lamp,portable LED-UV testing equipment |
||

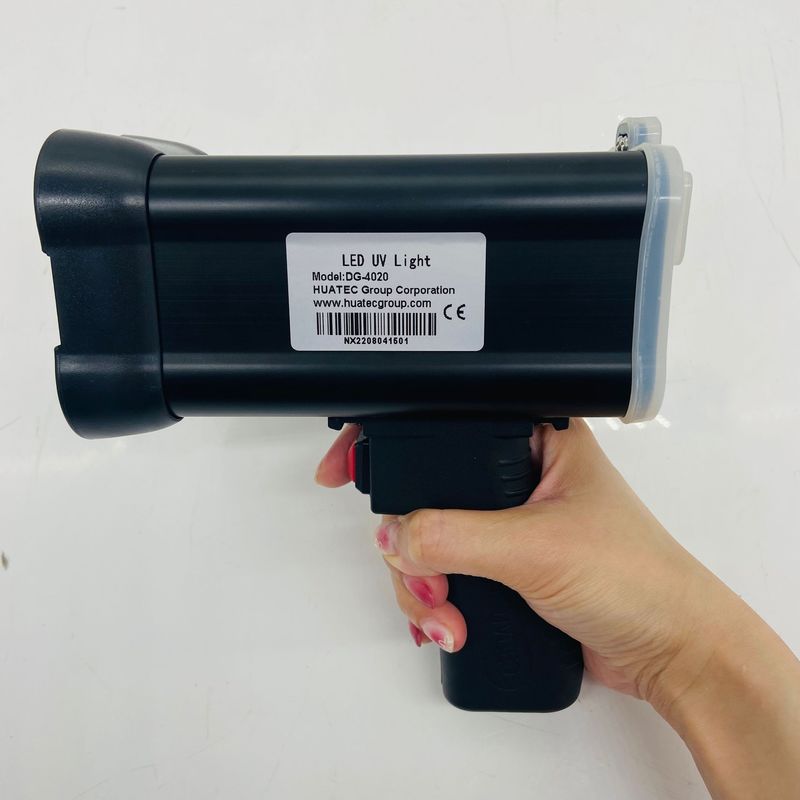

DG-4020 Dual AC&DC operation handheld LED-UV Lamp
Feature:
● Strictly comply with ASTM E3022
● UV-B content is 0
● Battery life of 2-3 hours
● Quick Battery Replacement
● Only 560g of battery is included
● Temperature rise of external surface under continuous operation < 8K (8℃)
● It has colour filter glass, and the white light content is less than 20LUX
● Can work with AC directly and also with DC battery
Dimension: (mm)
Parameters:
|
Project |
Parameter / mode |
|
Style |
Handheld |
|
UV(Light)-FLUX Indoor temperature 25℃ |
6000uW/cm2 |
|
White light content |
≤3LUX |
|
Irradiation area at depth of 380mm: (≥1000uw/cm²) |
Φ300mm |
|
Flux error |
0-40℃ ±10% |
|
Light distribution characteristics |
Central light distribution |
|
Power Supply |
AC100- 240V,50/60Hz |
|
Power |
UV LED-12VA |
|
Wavelength |
Room temperature 25℃, 365nm±3nm (UVA) |
|
Overall dimension |
157. 5mm (W) *76mm (D) *177mm (H) |
|
Weight |
560g including battery |
|
Battery capacity |
2200mA/H 12.6V |
|
Charging time |
2-3H |
|
Battery life (cumulative time) |
UV LED 2-3H |
DG-4020 Dual AC&DC operation handheld LED-UV Lamp
