| 이름: | X-ray image quality indicator | 사용: | IQI는 방사선투과검사 시스템 전반의 민감도를 검증하는 것입니다. |
|---|---|---|---|
| 애플리케이션: | 산업용 방사선 촬영에 사용되는 산업용 NDT 테스트 | 키워드: | X-ray image quality indicator |
| 강조하다: | X-ray image quality indicator,Radiography penetrameter equipment,Non-destructive testing penetrameter |
||

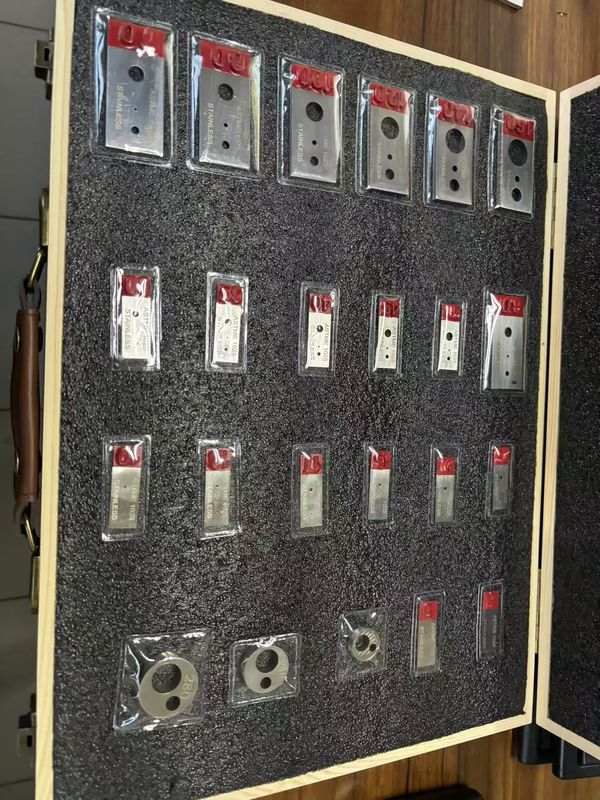

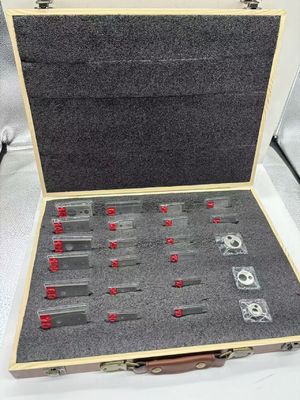

Radiography Penetrameter X-Ray Image Quality Indicator
The primary purpose of an IQI is to verify the sensitivity of the overall radiographic testing system . Since the visibility of a flaw depends on image quality, the IQI provides a proven method to confirm that the exposure, film processing, and viewing conditions were adequate.
Application field (industry use)
IQI is mandatory in any industry that relies on radiology to ensure safety and quality.
Oil and gas: Inspection of pipeline winding welds and pressure vessels (usually in accordance with API 1104 or ASME V).
Aerospace: Key component inspection (fuselage, engine, landing gear) to detect microcracks in lightweight alloys.
Automobiles: Quality control is carried out on engine cylinder blocks, suspension components, and castings to detect porosity.
Power generation: Evaluate boiler tubes, turbines, and nuclear reactor components.
Structural steel and construction: Verify the welding integrity of bridges, buildings, and heavy machinery.
| IQI | ASME SE1025 Hole type IQI Carbon steel– NO 5/6/7/8/9/10/12/15/17/20/25/30/35/40/45/50/55/60/65/70/80/100/120/140/160/200 |
| IQI | ASME SE1025 Hole type IQI Stainless steel– NO 5/6/7/8/9/10/12/15/17/20/25/30/35/40/45/50/55/60/65/70/80/100/120/140/160/200 |
| IQI | ASME SE1025 Hole type IQI Copper– NO 5/6/7/8/9/10/12/15/17/20/25/30/35/40/45/50/55/60/65/70/80/100/120/140/160/200 |
| IQI | ASME SE1025 Hole type IQI Nickel– NO 5/6/7/8/9/10/12/15/17/20/25/30/35/40/45/50/55/60/65/70/80/100/120/140/160/200 |
| IQI | ASME SE1025 Hole type IQI Aluminum– NO 5/6/7/8/9/10/12/15/17/20/25/30/35/40/45/50/55/60/65/70/80/100/120/140/160/200 |
| IQI | ASME SE1025 Hole type IQI Titanium– NO 5/6/7/8/9/10/12/15/17/20/25/30/35/40/45/50/55/60/65/70/80/100/120/140/160/200 |
| IQI | ASME SE1025 Hole type IQI Nickel– NO 5/6/7/8/9/10/12/15/17/20/25/30/35/40/45/50/55/60/65/70/80/100/120/140/160/200 |
Category Keywords
Core Terms Industrial NDT IQI, X-Ray Image Quality Indicator, Radiography Penetrameter, X-Ray Penetrometer.
