제품 상세 정보:
|
| 제품명: | 산업 방사선 영화 | 모델: | D4 D5 D7 |
|---|---|---|---|
| 패키지: | 100매 또는 50매 | 크기: | 356mm×432mm 14인치×17인치 305mm×381mm(12인치×15인치)260mm×360mm10인치 ×14인치) |
| 강조하다: | HUATEC industrial radiographic film,D4 D5 D7 NDT testing film,industrial X-ray film for NDT |
||

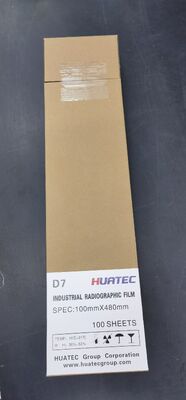

D4 D5 D7 HUATEC Industrial Radiographic Film
Product name and model specification
| Model | Specification |
|
D4,D4-D,H4,LA400,D5,D5-D, D7,D7-D,H7,H7-D |
356mm×432mm(14in.×17in.),305mm×381mm(12in.×15in.),260mm×360mm (10in. ×14in.),70mm×300mm,80mm×150mm,80mm×240mm,80mm×300mm,80mm×360mm, 100mm×356mm,195mm×275mm,70mm×200m,80mm×100m,80mm×200m |
Other specifications and packing capacity can also be provided according to customer requirements.
Features and uses
Industrial X-ray film is a kind of high resolution and high image resolution film which is widely used in nondestructive flaw detection. The film has high sensitivity, high contrast, high definition,
It can be directly or with lead sensitization screen for X or γ ray exposure. It is suitable for electronic components, synthetic materials, casting and casting, welding, etc.
NDT testing for shipbuilding, national defense and nuclear industry, aerospace and aviation industry, etc. Using blue polyester sheet base, two sides coated with emulsion layer, layer and
Protective layer. This film has rich layers, high image resolution and good definition. This film can be processed at room temperature, also can be processed by high temperature machine.
Features and uses
 |
GB/T19348.1 | EN 584.1 | ASTME 1815-08 | ISO 11699-1 |
| D4,D4-D,H4 | C3 | C3 | Ⅰ | C3 |
| D5,D5-D | C4 | C4 | Ⅰ | C4 |
| D7,LA400,D7-D,H7,H7-D | C5 | C5 | Ⅱ | C5 |
