제품 상세 정보:
|
| 음속 범위: | 1 ~ 19999m/s | 해결: | 1m/s, 0.001mm / 0.0001인치 |
|---|---|---|---|
| 탐침 주파수: | 2MHz,3MHz,5MHz,7.5MHz | 데이터 저장: | 두께, 음속, 시간 등을 포함한 1000가지 측정 |
| 강조하다: | ultrasonic velocity gauge tester,spheroidization rate testing equipment,non-destructive ultrasonic gauge tester |
||

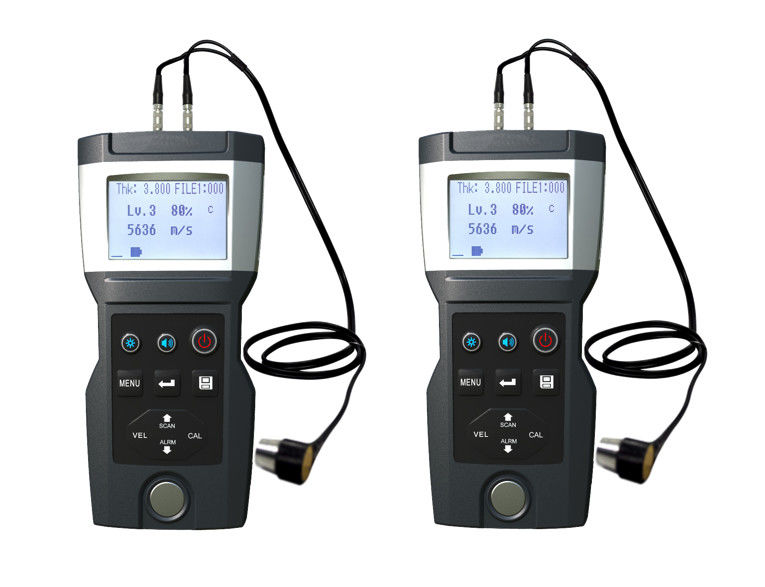

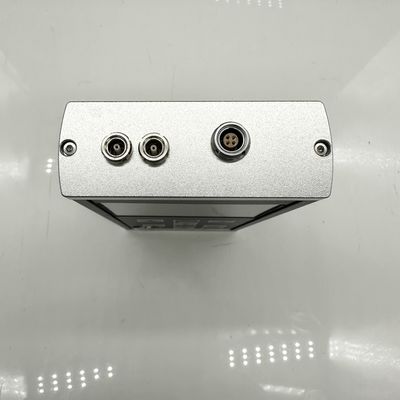

TG-1000C Online Spheroidization rate Ultrasonic Velocity Gauge Tester
TG-1000C is a portable online measurement & command control ultrasonic velocity gauge. Based on the same operating principles as SONAR it is capable of measuring the speed of sound (velocity) through the material. It is suitable for a variety of metallic and non-metallic materials such as casts, alloys or plastics, and can be used to indicate the consistency of the material.
Features:
Main Functions:
Technical Parameters
| Sound Velocity Range | 1 ~ 19999 m/s | Thickness Range | See Probe Parameters |
| Resolution | 1m/s, 0.001mm / 0.0001inches | Accuracy | See Probe Parameters |
| Measuring Period | 4 times per second | Probe Frequency | 2MHz,3MHz,5MHz,7.5MHz |
| Calibration Mode | Probe Calibration, Real-time Temperature Compensation | Data Storage | 1000 measurements, including thickness, sound velocity, time, etc. |
| Calibration block | 4.000mm(Steel) | Gain Adjustable | 16 Stages |
| Measuring Mode | scan, min/max capture, alarm | Thickness measure | Support |
| Display | English FSTN LCD Display with backlight |
Display Content | Thickness, Sound velocity, Stability, Battery, Measuring Mode, Time, etc. |
| Communication | Bluetooth & Mini-USB interface, virtual serial port protocol | Optional portable Bluetooth thermal printers | |
| Power Supply | 3.7V Li-Ion chargeable battery | Power off | Timeout power off, low battery power off |
| Usage Temperature | -10 ~ 50 °C | Storage Temperature | -30 ~ 60 °C |
| Size | 157mm*78mm*37mm | Weight | About 260g |
| Shell Material | ABS & PC alloy | Box Material | ABS (IK08 / IP67) |
Probe parameters
| Label | 5M Φ10 | 5M PT-08 | 7.5M PT-06 | 2M ZT-12 | 3M GT-12 |
| Measure Range (Steel) | 0.75~300 mm | 0.8~225 mm | 0.8~50 mm | 3.0~400 mm | 2.0~200 mm |
| Min. Measure Diameter | Ø25 x 3 mm | Ø20 x 1.2 mm | Ø15 x 1.2 mm | Ø30 x 4 mm | Ø25 x 3 mm |
| Probe Diameter | 13mm | 11mm | 9mm | 17mm | 15mm |
| Probe Frequency | 5MHz | 5MHz | 7.5MHz | 2MHz | 3MHz |
| Contact Temperature | -10~60°C | -10~60°C | -10~60°C | -10~60°C | -10~310°C |
Version Comparison
| Version | Online measurement | Command control |
| TG-1000 | x | x |
| TG-1000C | √ | √ |
