제품 상세 정보:
|
| 제품명: | 표준 시험편 | 테스트 표준: | ASME E1417P 및 WA TAM146040 |
|---|---|---|---|
| 너비: | 0.2~0.5μm | 총중량: | 1KG |
| 강조하다: | PSM-5 penetrant system calibration block,penetrant system monitor panel,NDT equipment calibration block |
||

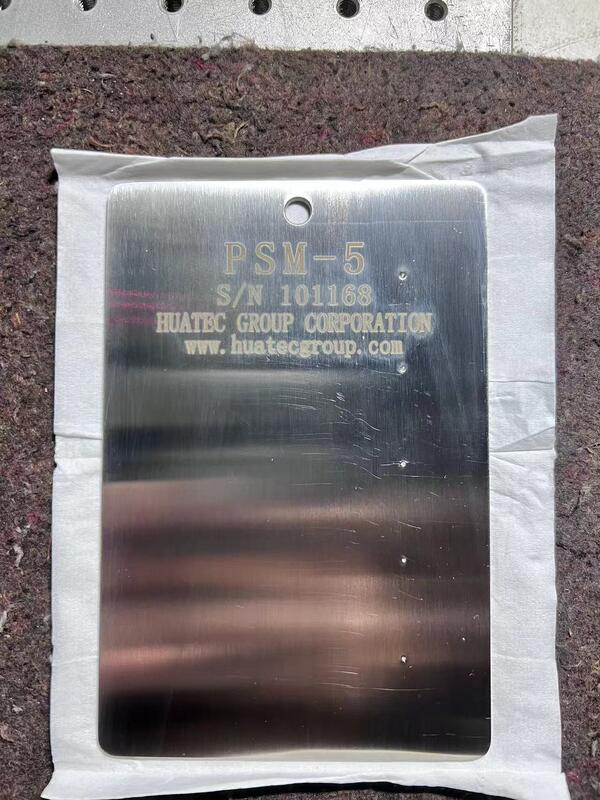

PSM-5 Penetrant System Monitor Panel Calibration Block
Penetrant System Monitor Panel,A stainless steel panel, 0.090" thick and measuring 4 x 6 inches. A chrome plated strip runs the length of one side of the panel. Five crack centers are evenly spaced in the chrome plating in order of magnitude; the largest is readily visible with low sensitivity penetrants, while the smallest is difficult to observe even with high sensitivity materials. Adjacent to the chrome plated section is a grit blasted area of "medium roughness", to judge penetrant wash characteristics.
The PSM-5 Panel comes in two versions. Both versions are manufactured to specifications:
Grit Blasted Type - has a chrome strip which has been lightly grit blasted in order to dull the surface.
Smooth Type - the chrome plated strip of the second version is not grit blasted.
PSM-5 Panel processing meets MIL-STD-6866 and ASTM E-1417 requirements for daily system check.
|
Specification |
All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated. |
| Material: | Test Report according to ISO 10474-3.1.B,JIS G 0415-3.1.B |
| Depth | 106µm |
| Width | 0.2~0.5µm |
| Oxidizing property | In -55℃ ~ 200℃ - store between three years not metamorphism,no oxidation,colour and lustre is silver |
| TRACEABLITY | Calibration standards used are traceable to international standards |
Use of PMS-5 test block
The "Penetration system monitoring test block" can provide a method to quickly determine the continuous performance of the liquid penetration inspection system, which can reflect the various factors in the system. 寽 Chemical agents, cleaning agents, drying boxes and developing agents are normal or not. The PSM-5 test block, also known as the known defect standard block, can reveal the sudden performance loss of each factor, thereby alerting the operator to the failure of the system performance to avoid error and omission. The PSM-5 test block is the most practical tool for permeation inspection to meet the requirements of MIL-STD-6866 and ASTM E1417, and it also meets the requirements of P&WA TAM146040.
Shape and structure of PMS-5 test block
PSM-5 test block is made according to P&WA standard, its matrix is stainless steel, the surface is divided into two parts: chrome plating zone and yarn blowing zone, there are 5 radiating cracks of different sizes evenly distributed the chrome plating zone, its shape and size are shown in Figure 1. The pattern of 5 radiating cracks on the test block is star-shaped circle or radial shape. The chrome plating area is polished mirror, and the sand blowing area is medium roughness.
