제품 상세 정보:
|
| 제품명: | 구부릴 수 있는 평면 패널 감지기 | 신틸레이터: | 고스 |
|---|---|---|---|
| 픽셀 피치(μm): | 100 | 유효 활성 영역(mm): | 102.4×256 |
| 강조하다: | wireless bendable flat panel detector,industrial DR system detector,non-destructive testing flat panel |
||

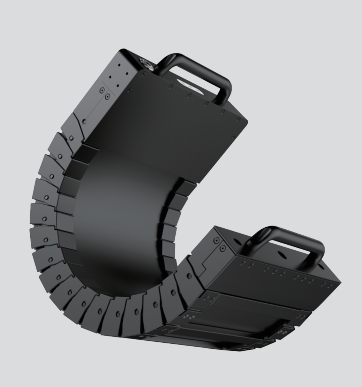

Wireless Bendable Flat Panel Detector for Industrial DR Systems
0410-BA is a new generation, high-performance wireless bendable flat panel detector. It features a 100μm pixel pitch with GOS, and can be bent freely to adapt to the needs of specific work environment, especially as non-destructive tests in the inspection of pipelines. It can improve the quality of image and avoid image distortion.
10 × 25 cm² bendable active area
100μm pixel pitch with 16-bit ADC for more image details
Robust wired and 5G wireless data interface
Up to 180 sec. X-ray exposure window
Technical Specifications
| Sensor technology | Flexible TFT / PD matrix panel |
| Scintillator | GOS |
| Pixel pitch (µm) | 100 |
| Effective active area (mm) | 102.4 × 256 |
| Effective pixel matrix | 1024 × 2560 |
| Max. Window time (s) | ≤180 |
| Frame Rate (fps) | 1 |
| AD conversion (bit) | 16 |
| Trigger Mode | AED / Software |
| Energy range (kV) | 40 - 450 |
| Water and Dust Proof | IP67 |
| Limited bending radius (mm) | ≥ 80 |
| ECU Data interface | Wired: GigE WIFI: WIFI: 802.11, 2.4G/5G |
| Dimensions (mm) | 155× 364 × 28(FPD) 144 × 118 × 30.5(ECU) |
| Weight (kg) | ≤2.5(Only FPD) ≤3.5(With ECU) |
| Operating Temperature (℃) | -20 ~ 50 |
| Storage & Transport Temperature with Package (°C) | -20 ~ 60 |
| Operating Humidity (% RH) | 5 ~ 90 |
| Storage & Transport Humidity with Package (% RH) | 5 ~ 95 |
Dimensions
