제품 상세 정보:
|
| 테스트 준비: | 0.15~20mm | 속도 범위: | 1000~9999m/s |
|---|---|---|---|
| 정도: | H<10mm±0.005mm H≥10mm±(0.005mm+H/100)mm | 저장 용량: | 데이터의 500개 세트 |
| 시험 모델: | EE/IE | 테스트 재료: | 강철, 철, 유리, 플라스틱, 알루미늄 등 |
| 화면 크기를 표시합니다: | 2.4"FSTN, LED 백라이트 | ||
| 강조하다: | ultrasonic thickness gauge 0.001mm resolution,ultra thin thickness gauge non-destructive testing,precision ultrasonic gauge with high resolution |
||

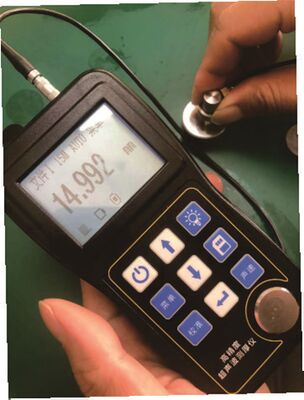

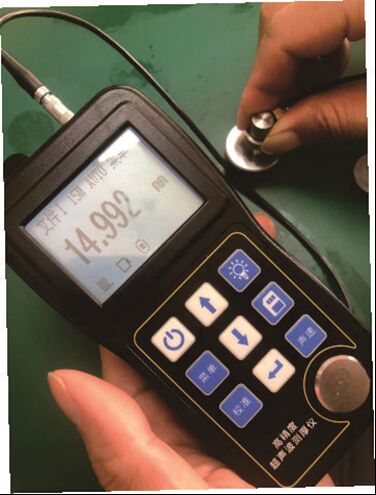

TG-3219 Ultra Thin 0.001mm Relolution Ultrasonic Thickness Gauge
TG-3219 ultrasonic thickness gauge adopts the principle of pulse reflection ultrasonic measurement, which is suitable for the measurement of the thickness of various materials in which the ultrasonic can propagate at a constant speed and get the reflection from the back. This instrument can accurately measure various plates and various processed parts. It can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields. For different applications, the instrument is divided into basic type, high temperature type, cast iron type and precision type.
Basic Parameters
|
Be able to pass through the coatings |
IE mode can pass through 1mm coating |
Measuring range |
0.15~20mm |
|
Precision |
H<10mm±0.005mm H≥10mm±(0.005mm+H/100)mm |
Probe size |
Diameter 6mm |
|
Measurement mode |
EE/IE |
Display screen size |
2.4 "FSTN, LED backlight |
|
Measurable materials |
Steel, iron, glass, plastic, aluminum, etc |
Sound velocity range |
1000~9999m/s |
|
Storage capacity |
500 sets of data |
Units of measurement |
Metric/imperial |
|
Language supported |
English |
Working temperature |
0~50℃ |
|
Environment humidity |
Relative humidity less than 90% |
Power supply |
2*1.5V dry battery |
|
Product size |
151*76*33mm |
Product weight |
220g |
Product Features
l High frequency single crystal probe can be used to realize the function of measuring ultra-thin parts.
l The "echo-echo" ultrasonic thickness measurement technology is adopted to realize the thickness measurement through the coating.
l The display resolution is 0.001mm,and the measurement range is 0.15-20mm.
l LCD contrast is adjustable, 128*64 dot matrix LCD display, with LED backlight,which can be used in various light environments.
l The USB interface can be used to transfer data to the computer.
Basic Configurations
|
Host TG-3219 |
1pc |
|
Probe |
15M single crystal probe 1 pc |
|
Coupling agent |
1 pc |
|
Manual, Warranty Card, Certificates |
1 pc for each |
