제품 상세 정보:
|
| 측정 범위: | 0.03-3.5mm(에폭시 콜타르 피치 미디엄) | “Ｈ”레벨 출력 전압: | 0.5-15KV |
|---|---|---|---|
| 높은 전압 제어 시스템: | 일반적인 가변 저항 조정 | DC 공급: | 12V |
| 소비: | <5W | 알람 지연: | 1-2S |
| 고전압 탐침: | 전자 고전압 발생기 | ||
| 강조하다: | light weight porosity holiday detector,HD-201A pointer display detector,non destructive testing equipment with warranty |
||

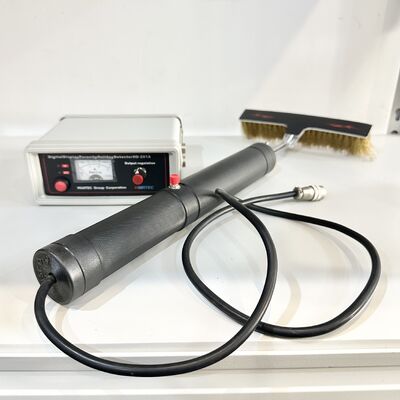

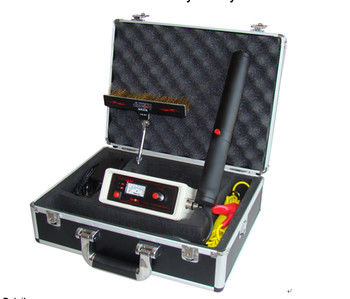

HD-201A Pointer Display Light Weight Porosity Holiday detector
[Function]
HD-201 Porosity Holiday detector is a special testing equipment used to detect oil and gas pipelines, cables, enamel, metal tank, hull and other protective coatings flaws. It is a simple and practical equipment
[Characteristic]
1,Low power consumption, small size, light weight;
2,Simple operation;
[Main technical index]
[Accessories]

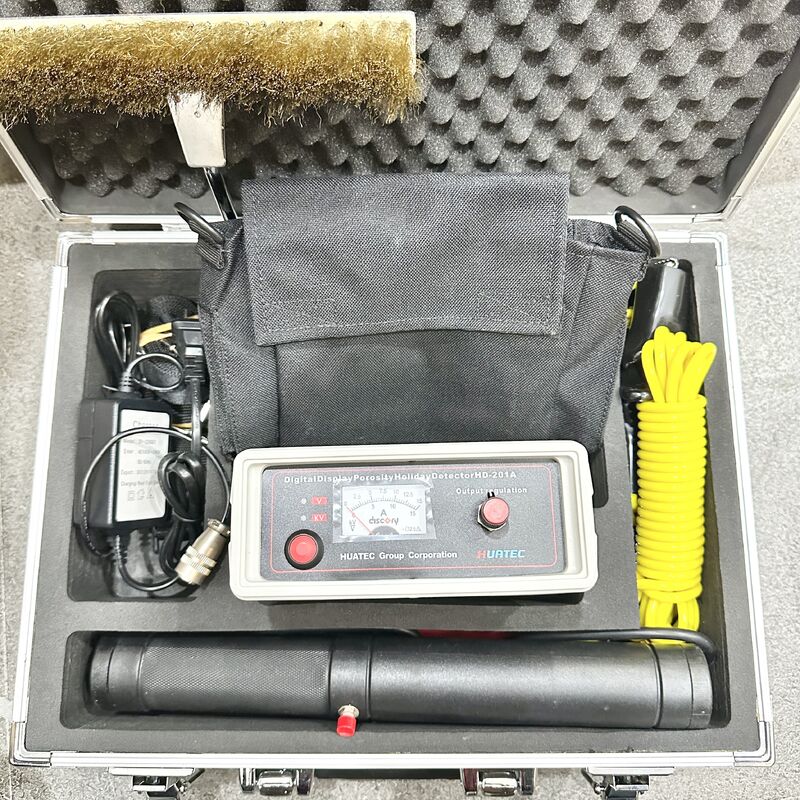

Charger, high pressure gloves, long cable, short connecting line, Connecting magnet, earth rod, The brush plate, Manual
[Principle]

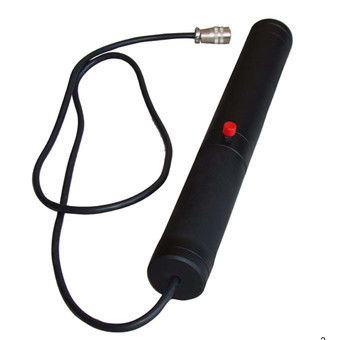

The detector generates a high DC voltage that is applied to the coating surface through a probe. The detector is connected to the substrate via the high voltage returned. When the probe is passed over a coating flaw, then the electrical circuit is completed and current flows from the probe to the substrate. As a result, audible and visual alarms are activated in the detector and a spark may be produced at the flaw.
