제품 상세 정보:
|
| UV 조사량: | 2500uW/cm2 (5cm 거리) | 카메라 해상도: | 2048*1536, 최대 해상도 3264*2448 |
|---|---|---|---|
| 카메라: | 800W | 케이블 길이: | 2미터, 15미터까지 맞춤 설정 가능 |
| 방수형: | IP65 | ||
| 강조하다: | oil drilling pipe UV endoscope,UV detection light for pipes,non-destructive testing endoscope with UV |
||

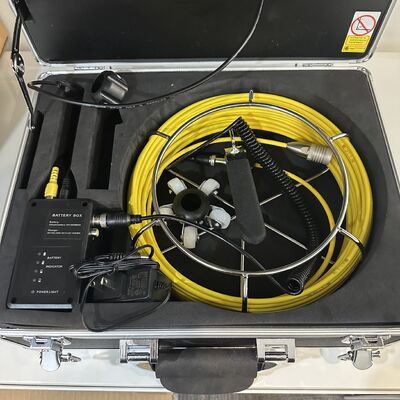

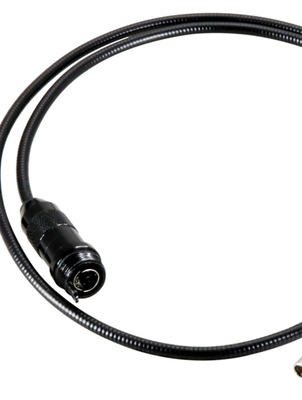

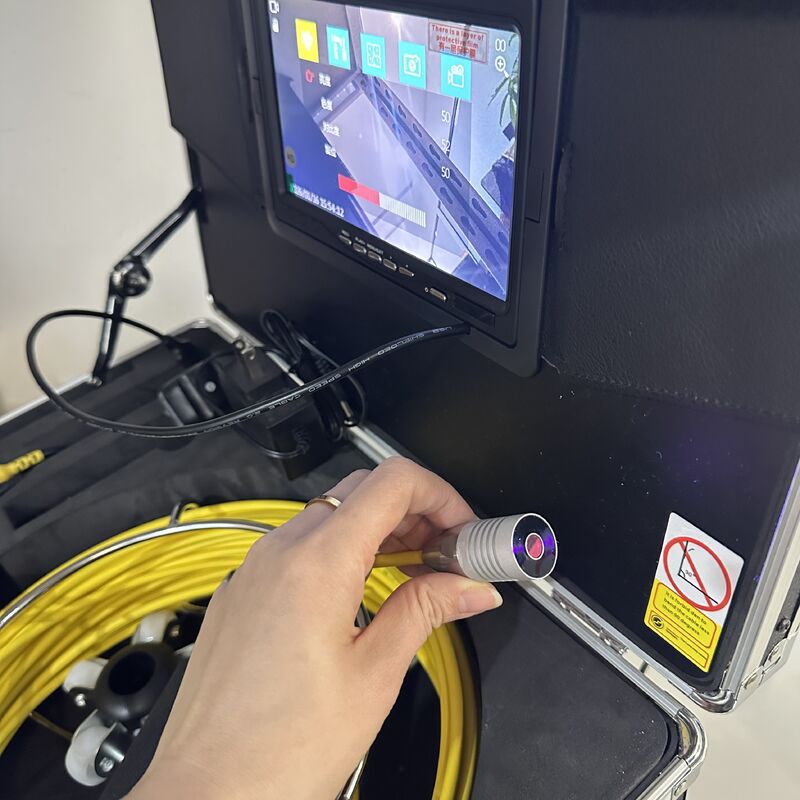

DG-800 Oil Drilling Pipe UV Ultraviolet Detection light Endoscope
Application:
Used for oil drilling pipe, is by natural gas pipeline and other linear pipeline ultraviolet detection, heat exchanger tube internal inspection with recording.
Specifications:
| Camera |
800W |
| UV irradiance | 2500uW/cm2 (5cm distance) |
| Focus | automatically |
| White light |
included |
| Probe size |
25*21mm |
| Water proof type |
IP65 |
| Interface |
USB2.0 Can connect with pc through software, to store data into computer |
| Camera resolution |
2048*1536, maximum resolution 3264*2448 |
| Working direction |
The side view and front view are all possible, can move 360deg inside |
| UV camera type |
articulated, camera is fixed in one direction and rotate it to view all four walls of tube |
| Cable length |
2 meters, can be customized to 15meters |
| Weight |
215g |
