110V AC Yoke Magnetic Particle Testing

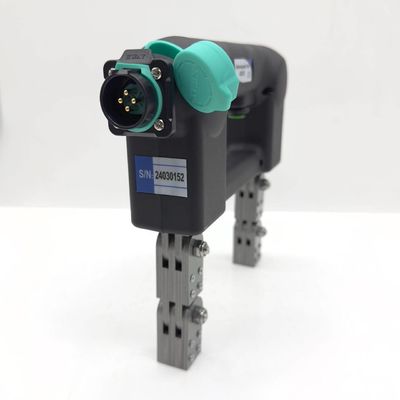

110V AC Yoke Magnetic Particle Testing HCDX-Y2

The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.

Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch,power cord,mainboard,UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.

SPECIFICATION COMPLIANCE

JB/T7411-2012

ASTM E1444-05

ASTM E709

EN10228-1:1999

ISO 9934

ASTM E 3024

Parameters index

Note:“X”not included, “●”included

FEATURES

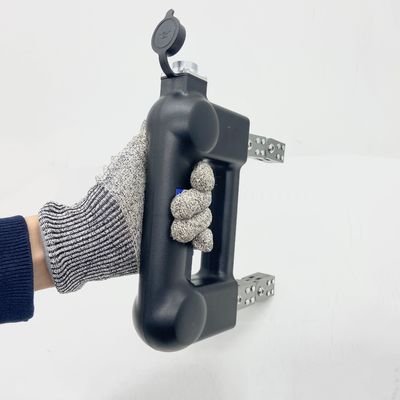

• Ergonomic, light-weight design

• IP54 sealed housing resists dust and water

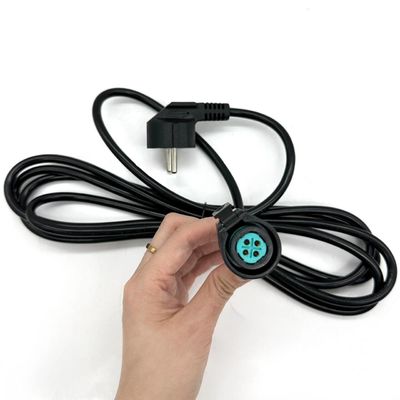

• Field-swappable power cord

• Isolated, replaceable trigger switch

• Steel shields for leg protection

• Exceeds ASTM lifting specifications

• Convenient carrying case supplied with all yoke shipments

• Optional LED UV & White yoke light lasts longer and is more intense compared to traditional bulbs

• Two power supply modes are optional:

l 110V/220V/240V Single-phase AC power supply (straight plug mode);

l DC magnetization power supply (DC battery pack with digital display screen)

• Optional special waist pack can carry magnetized power battery, magnetic suspension, contrast agent etc.

APPLICATIONS

Defect location: Surface Ideal for:

• Field Testing

• Difficult to reach areas

• Spot, weld and in-service inspections Defect examples:

• Seams

• Tears

• Shrink cracks

• Quenching cracks

• Fatigue cracks

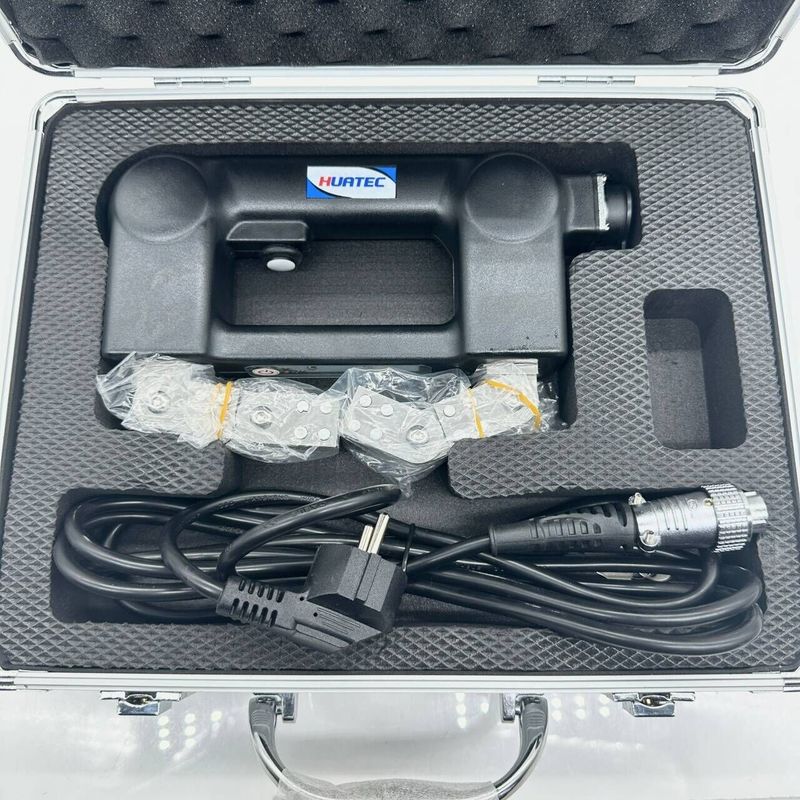

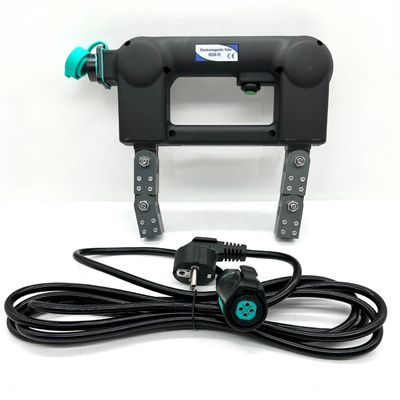

Standard package

HCDX-Y2

Yoke

Power cord

Calibration certificate

Warranty card

Carrying case
