제품 상세 정보:
|
| 브리넬 테스트 범위: | 15.9-650HBW（ASTM E10） | 지속 시간: | 0-99s |
|---|---|---|---|
| 경도 분해능 비율: | 0.1HBW | 환산척: | Brinell, (Rockwell과 Vickers는 선택 사항입니다) |
| 시험력 편차: | ＜ 1% | 전압: | AC220+5%,50～60Hz |
| 강조하다: | portable Brinell hardness tester,closed loop hardness tester,touch screen Brinell tester |
||

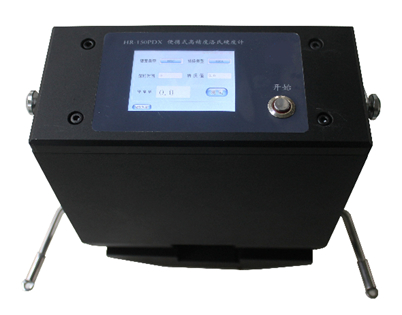

HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester
Main Features:
1. The tester can automatically test Brinell (depth measurement method) (HBT) scale.
2. Applies electric loading, high-precision sensor and possesses unique close-circuit control system;
3. Touch-screen interface; convenient operation; choose hardness scale directly; force value changes automatically in test parameter;
4. Auto-correction of high, medium and low scales of brinell hardness blocks according to standard blocks;
5. Auto-correction of test force through standard dynamo-meter;
6. Automatically exertion of initial and main test force;
7. Strong data processing function including: HB and multiple hardness scale conversion; setting of valid range; auto alarm when limit is exceeded; input name of tester, name of sample and other information;
8. More sample and testing information; testing data can be saved automatically to excel format and saved on u-disk for convenience of editing and processing.
Technical Specifications:
|
Model |
HB-187.5PDX |
|
Brinell total test force |
5 Kgf ,6.25 Kgf ,10 Kgf ,15.625 Kgf ,25 Kgf ,30 Kgf ,31.25Kgf 62.5Kgf,187.5Kgf |
|
Brinell hardness scale |
HBW2.5/6.25,HBW2.5/15.625,HBW2.5/31.25, HBW2.5/62.5,HBW2.5/187.5,HBW1/5,HBW1/10,HBW1/30 |
|
Brinell testing range |
15.9-650HBW(ASTM E10) |
|
Duration time |
0-99s |
|
Hardness resolution ratio |
0.1HBW |
|
Test force deviation |
＜1% |
|
Data output |
LCD display |
|
Data saving |
Measurement data saved in u-disk in excel format |
|
Conversion scale |
Brinell,(Rockwell and Vickers are optional) |
|
Criteria met |
BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
|
Specimen dimension |
Plane surface: area≥160X100,thickness≥5mm; Round stick(pipe): diameter over 250mm; When between 60 to 250mm, fix v-shaped block and chain to the magnet to fasten sample. |
|
Size |
320×170×230mm |
|
Weight |
10.5kg |
|
Voltage |
AC220+5%,50～60Hz |
Standard Accessories
|
Item |
Quantity |
Item |
Quantity |
|
Main unit HB-187.5PDX |
1 |
1mm,2.5mm carbide indenter |
1 each |
|
Hardness block (HRB) |
2 |
power source |
1 |
|
Iron base |
1 |
U disk, touch pen |
Each 1 |
|
Power cord |
1 |
Manual |
1 |
|
Product certificate, warranty card |
1 |
Product certificate, warranty card |
1 |
