제품 상세 정보:
|
| 테스트 범위: | 8～650HBW | 견고성 결의안: | 0.01HBW |
|---|---|---|---|
| 체류 시간: | 0~60초 | 맥스. 샘플 높이: | 230mm |
| 인후 깊이: | 135mm | ||
| 강조하다: | single arm Brinell hardness tester,touch screen Brinell tester,HB-3000AM hardness testing equipment |
||

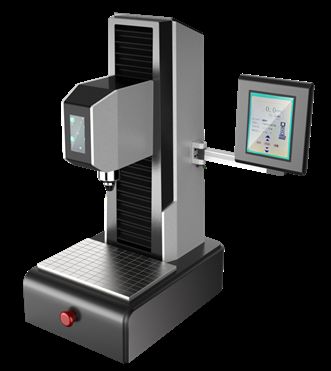

HB-3000AM Single arm Touch Screen Operation Brinell Hardness Tester
Application range:
Suitable for hardness testing of materials such as cast iron, steel, non-ferrous metals, and soft alloys, as well as for hardness testing of certain non-metallic materials.
Wide application range, suitable for precise measurement of parallel planes, and stable and reliable surface measurement.
Technical Specification:
|
Model |
HB-3000AM |
|
|
Test Force |
kgf |
62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
|
N |
612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N |
|
|
Test Range |
8～650HBW |
|
|
Hardness Reading |
LCD Display |
|
|
Hardness Resolution |
0.01HBW |
|
|
Loading method |
electronic force application |
|
|
Statistical functions |
upper and lower limits, average value, indentation diameter, maximum value, minimum value, number of tests, etc |
|
|
Dwell Time |
0~60s |
|
|
Max. Sample Height |
230mm |
|
|
Throat Depth |
135mm |
|
|
Power Supply |
AC220V,50Hz |
|
|
Execute Standard |
DIN EN ISO 6506-2,ASTM E10,GB/T231.2 |
|
Features:
*Force application system: Adopting a fully automatic electronic closed-loop pressure sensor control system, it can easily achieve automated operation of loading, holding, and unloading;
*Product appearance: Professional industrial design, capable of accommodating larger workpieces,;
*Touch screen operation: Easy to operate, directly set the current test scale, holding time, and hardness conversion value parameters, reducing the difficulty of operation for users;
*Measuring head lifting: The measuring head can be automatically raised and lowered with one click, making it convenient and simple for operators to operate during use;
*Hardness conversion function: supports hardness conversion, making it convenient for users to compare and reference between different hardness standards; The latest ISO, ASTM, GB and other standard scales are available for conversion;
*Data processing function: automatic storage of test results and other data, which can be accessed and printed on a computer via Bluetooth connection at any time. *Data statistics can be performed, such as calculating the average, mean square error, maximum and minimum values, for easy uncertainty assessment;
*Instrument configuration: Equipped with a 20x reading microscope as standard, the Brinell automatic indentation measurement system can be optionally selected to achieve efficient and accurate indentation diameter measurement and reading.
Packing List:
|
Name |
Qty |
Name |
Qty |
|
Instrument Main Body |
1 set |
20× Digital Measuring Eyepiece |
1 pc |
|
Φ2.5mm, Ф5mm, Ф10mm Ball Indenter |
each 1 pc |
Φ110mm Flat Anvil |
1 pc |
|
Φ60mm Flat Anvil |
1 pc |
Φ60mm V-shaped Anvil |
1 pc |
|
Hardness Block |
2 pc |
|
1 pc |
|
Fuse 2A |
2 pcs |
Power Cable |
1 pc |
|
Usage Instruction Manual |
1 pc |
Anti-dust Cover |
1 pc |

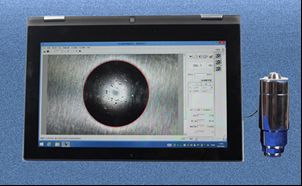

Brinell Measurement System (optional)
