제품 상세 정보:
|
| 시편의 최대 높이: | 200mm | 외벽에 대한 인덴터의 거리: | 155mm |
|---|---|---|---|
| 전원 공급 장치: | AC220+5%, 50 ~ 60Hz | 체류 시간: | 0 ～ 99s |
| 측정기 결의안: | 0.1um | 경도 값 결의안: | 0.1HBW |
| 테스트 력 정확도: | 62.5 ℃ | ||
| 강조하다: | digital LCD Brinell hardness tester,automatic loading hardness tester,electronic Brinell tester with warranty |
||

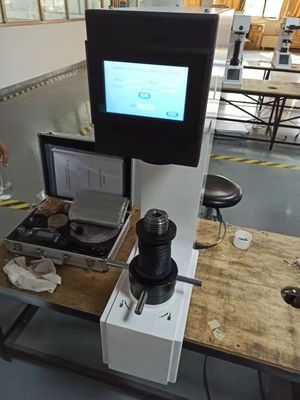

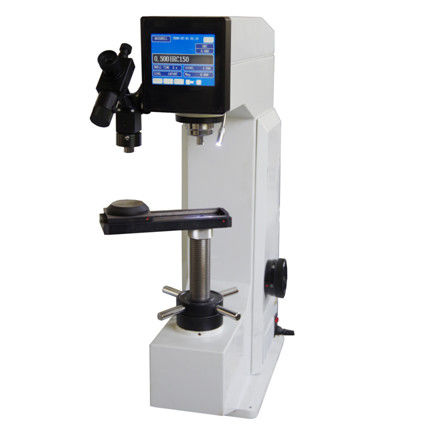

HB-3000DX Digital LCD Display Electronic Automatic Loading Brinell Hardness Tester
Main features:
1. Adopts electronic automatically add load, with high accuracy sensor, have special closed-loop control system , automatic compensation for each shift
2. Eyepiece structure with digital encoder, measure D1, D2 value, LCD displays hardness value and D1, D2 value directly
3. Can be calibrated according to standard hardness block or length scale.
4. The test force can be modified automatically by standard dynamometer.
5. The hardness values of rockwell and vickers can be converted.
6. All data is stored in EXCEL format on U disk, or can choose built-in printer, RS232 is optional.
Technical specification:
|
Model |
HB-3000DX |
|
Brinell scale |
HBW2.5/62.5,HBW2.5/187.5,HBW5/62.5,HBW5/125,HBW5/250, HBW5/750,HBW10/100,HBW10/250,HBW10/500,HBW10/1000, HBW10/1500,HBW10/3000 |
|
Test force(Kgf) |
62.5kgf(612.9N),100kgf(980.7N),125kgf(1226N), 187.5kgf(1839N),250kgf(2452N),500kgf(4903N),750kgf(7355N) 1000kgf(9807N),1500kgf(14710N),3000kgf(29420N) |
|
Carried standard |
BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
|
Test force accuracy |
62.5～250kgf≤1% 500～3000kgf≤0.5% |
|
Measuring device resolution |
0.1um |
|
Hardness value resolution |
0.1HBW |
|
Dwell time |
0～99S |
|
Data output |
LCD display |
|
Data storage |
All data is stored in EXCEL format on U disk, or can choose built-in printer |
|
Max. Height of specimen |
200mm |
|
Distance of indenter to outer wall |
155mm |
|
Dimension |
550×210×800mm |
|
Weight |
110kg |
|
Power supply |
AC220+5%,50～60Hz |
Standard Accessories:
|
Item |
Quantity |
Item |
Quantity |
|
Eyepiece |
1 |
Large, Medium, “V” shaped Testing Table |
Each 1 |
|
Each 1 |
Standard block(HBW10/3000, HBW10/1000,HBW2.5/187.5) |
Each 1 |
|
|
U disk, touch pen |
1 |
Dust bag |
1 |
|
Power cable |
1 |
Fuse 2A |
2 |
|
Certificate, warranty card |
1 |
Manual |
1 |
