제품 상세 정보:
|
| 합계에 의한 검사 군사력: | 588.4N(60kgf), 980.7N(100kgf), 1471N(150kgf) | 체류 기간을로드하십시오: | 2s ～ 50s, 설정 및 저장할 수 있습니다 |
|---|---|---|---|
| 해결: | 0.1HR | 메모리: | 최대 500개의 테스트 결과가 자동으로 저장됩니다. |
| 예압: | 98.1N(10kgf) | 테스트중인 공간: | 수직에서 200mm, 수평에서 165mm |
| 전원 공급 장치: | 교류, 220V/110V, 50～60Hz, 4A | ||
| 강조하다: | automatic Rockwell hardness tester,metal plastic hardness tester,non-destructive hardness testing equipment |
||

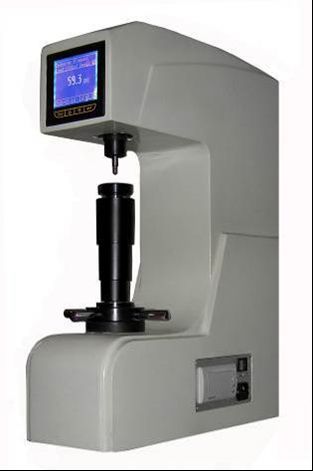

HR150P Automatic Metal and Plastic Rockwell Hardness Tester
l HR150P can be used directly to measure Rockwell hardness for metal and plastic material.
l Provided with many features such as high measuring precision, wide measuring range with 15 Rockwell scales.
l Automatic test force switch according the selected scale without manual operation.
l Automatic load cycle. The loading, dwell, unloading process of the main test force are controlled exactly to meet standard.
l Measuring results digitally displaying and can be printed, or transmitted to external computer automatically.
l The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal, and engineering plastic etc.
l Test value can be transformed to the value of HB, HV, HLD, HK and σb value.
l The tester meets all the following standard such as ISO 6508-2, ASTM E18, BS EN ISO6508-2, GB/T230.2.
|
Standard configuration |
||
|
|
Host machine |
1 |
|
|
Standard hardness block for A scale |
1 |
|
|
Standard hardness block for B scale |
1 |
|
|
Standard hardness block for C scale |
1 |
|
|
ball indenter (1/16″) |
1 |
|
|
120°cone diamond indenter |
1 |
|
|
Mounting screws for indenter |
2 |
|
|
Flat anvil |
1 |
|
|
“V ”shape anvil |
1 |
|
|
Power supply wire |
1 |
|
|
Screwdriver for indenter mounting |
1 |
|
|
Dust cover |
1 |
|
|
Micro printer(inbuilt) |
1 |
|
Optional accessories: |
||
|
|
Short diamond indenter |
|
|
|
Chisel diamond indenter |
|
|
|
Slender diamond indenter |
|
|
|
1/8″ball indenter and spare steel ball |
|
|
|
1/4″ball indenter and spare steel ball |
|
|
|
1/2″ball indenter and spare steel ball |
|
|
|
φ225 anvil |
|
|
|
φ150 anvil |
|
|
|
Standard hardness block for other scales |
|
· Preload:98.1N (10kgf)
· Total test force:588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
· Scales:HRA,HRB,HRC,HRD,HRE,HRF, HRG,HRH,HRK,
HRL,HRM,HRP, HRR,HRS,HRV
· Load dwell duration: 2s～50s, can be set and stored
· Resolution :0.1HR
· Display:High definition backlight LCD
· Operation:Menu selectable, Membrane keypad
· Upper/lower limits setting & alarming
· Data statistics: Avg., Max., Min., S, R available
· Curved surface correcting automatically
· Memory: Max 500 items of test results stored automatically
· Data output: USB port to external PC
· Printer:Model HR1500 with a RS-232 port to the external micro printer (Optional)
· Testing space:200mm in vertical, 165mm in horizontal
· Dimensions: 550mm×200mm×720mm
· Power supply: AC, 220V/110V, 50～60Hz, 4A
· Net weight: 100kg
