제품 상세 정보:
|
| 적용 가능한 배관내경: | φ170-380mm (내 직경) | 출력 전압: | 60-160 kV |
|---|---|---|---|
| 출력 전류: | 3 MA | 노출 시간: | 0-3 분 |
| 위치 정확도: | ±5mm | 여행 속도: | 12개 Ｍ / 분 |
| 초점 사이즈: | 1.0*3.5 | X선 조사각도: | 360°*40° |
| 강조하다: | high efficiency radiographic pipeline crawler,x-ray pipeline weld detector,non-destructive testing equipment with warranty |
||

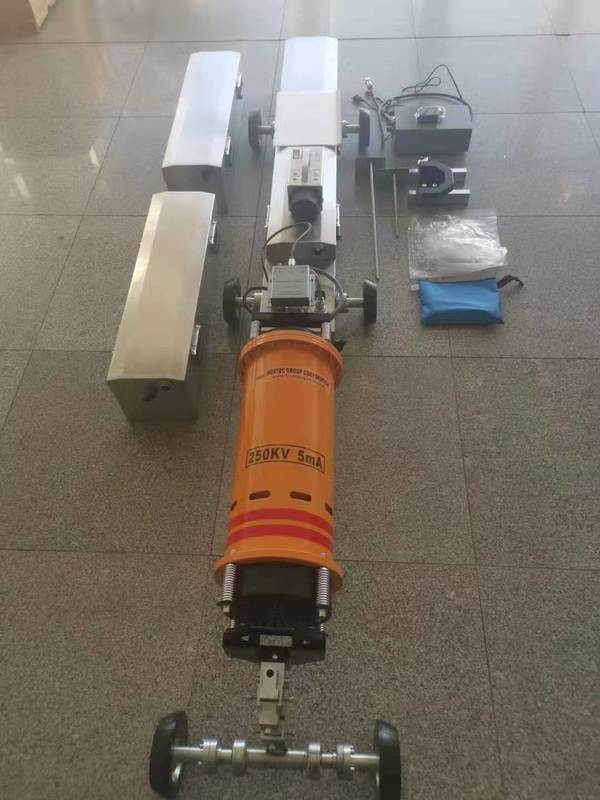

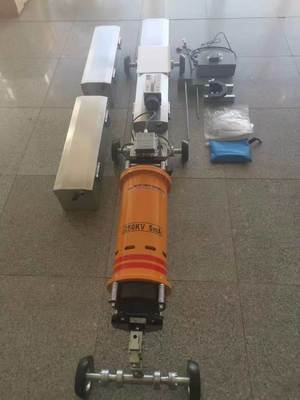

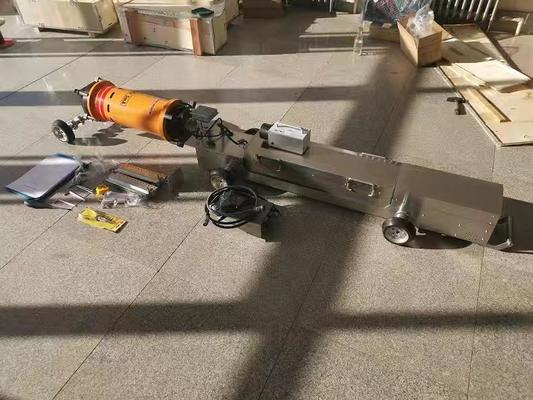

HXPC-100B3X High Efficiency Radiographic Pipeline Welds Detecting X-ray Pipeline Crawler
Features
l Unlike controlling the equipments via listening to sounds, manipulators can control the exposure moments and manipulate the X-ray pipeline crawlers to move forward or backward via magnetic orientator.
l Magnetic locators have the following features: higher positional accuracy, strong penetrability, and higher stability. The magnetic transmitter is equipped with electric display.
l The X-ray pipeline crawlers can display the voltage of the battery and directly judge the use of the battery.
l The X-ray pipeline crawlers’ software is written with fault codes. Please refer to the fault code table to detect equipment malfunctions.
l The X-ray pipeline crawler has smaller size, lighter weight, and it is more convenient for transportation and operation.
l Equipped with all kinds of protection functions, including encountering water protection, 20 minutes no one operation protection, etc.
l Users can replace the controller, the circuit board, and other parts easily due to modular design.
l The generator adopts a small 1605 portable circumferential cone target flaw detector: the controller and the head of the machine are separated, which is more convenient for users to replace, debug, and test. If the generator is equipped with the controller, the whole set can be used as a portable flaw detector.
l The crawler is equipped with false load, and the time is set for 0.2 minute. The crawler can simulate the real load working, such as exposure, moving forward or backward without connecting pipe head. This function enable users to learn how to locate and determine the fault.
l The lengthening shaft adopts keyless connection, which is more convenient to replace.
l The magnetic receiver has 8 gear ranges, which satisfy the requirements of different diameters.
Parameters
|
Crawler model |
HXPC-100B3X |
|
Applicable pipe inner diameter |
Φ170-380mm (The inner diameter) |
|
Cleaning pipe optimum climbing slope |
12° |
|
controlling method |
Magnetic positioning |
|
output voltage |
60-160 kv |
|
Output current |
3 mA |
|
exposure time |
0-3 min |
|
positioning accuracy |
±5 mm |
|
Travel speed |
12 m/min |
|
Battery voltage / capacity |
108V/10AH |
|
Non-exposure walking distance |
1km (round trip) |
|
Applicable wall thickness |
≤10mm |
|
Crawler Total length (mm) |
1870 (car body 1170mm, generator 600mm,connection 100) |
|
Driving mode |
Single drive |
|
focal spot size |
1.0*3.5 |
|
X-ray radiation angle |
360°*40° |
|
Operating ambient temperature |
-20°C to +75°C |
|
storage temperature |
0°C to +60°C |
|
Applicable environmental humidity |
≤85% |
|
Battery box weight |
25Kg,42Kg |
|
Generator weight |
8.5kg |
|
Climbing weight |
≤30kg |
|
The turning radius of the crawler |
＞15D |
|
Generator type |
HUATEC XXH-1605 glass tube |
Standard delivery
|
No. |
Composition content |
Quantity |
Comment |
|
1 |
Crawler (vehicle) |
1 pc |
|
|
2 |
X-ray generator |
1 pc |
|
|
3 |
The battery pack |
2 cases |
|
|
4 |
Battery charger |
1 pc |
|
|
5 |
Magnetic locator transmitter |
1 pc |
|
|
6 |
Magnetic positioning receiver |
1 pc |
|
|
7 |
Magnetic positioning charger |
1 pc |
|
|
8 |
Lengthening shaft |
1 set |
6 pc |
|
9 |
Wheels (big) |
1 set |
6 pc |
|
10 |
Wheels (small) |
1 set |
6 pc |
|
11 |
Lengthen the plate |
1 set |
2 pc |
|
12 |
Tool |
1 set |
|
|
13 |
Certificate of conformity, manual |
1 pc |
|
|
14 |
Assembly drawing |
1 set |
|
|
15 |
Fault comparison table |
1 pc |
|
Optional acessories
Lead screen/ Lead letter/ Cassette/ IQI/ Film/ Film viewer/ Densitometer/ Personal radiation dosimeter/ Protective clothing/ Gamma ray alarm lamp
