With Digital Display NDT X-ray Flaw Detector Film Developer Processor

With Digital Display NDT X-ray Flaw Detector Film Developer Processor
With Digital Display NDT X-ray Flaw Detector Film Developer Processor With Digital Display NDT X-ray Flaw Detector Film Developer Processor With Digital Display NDT X-ray Flaw Detector Film Developer Processor With Digital Display NDT X-ray Flaw Detector Film Developer Processor

큰 이미지 :  With Digital Display NDT X-ray Flaw Detector Film Developer Processor

제품 상세 정보:
원래 장소: 중국
브랜드 이름: HUATEC
인증: ISO, CE, GOST
모델 번호: HDL-P17A
결제 및 배송 조건:
최소 주문 수량: 1 세트
포장 세부 사항: 나무상자에서
배달 시간: 지불 후 5 ~ 10 일
지불 조건: L/C, T/T, Western Union
공급 능력: 한 달에 50 세트

With Digital Display NDT X-ray Flaw Detector Film Developer Processor

설명
영화 상술: 최소 10*10cm 최대 45*∞cm 수세식 시간: 90-360sec
개발 시간: 20-60sec 빨개지는 크기: 140 부분 / hours(14 *17 )210 부분 / 시간(11 *14 )
약제 탱크 능력: 각각 8L을 개발하고, 고치고 씻기 현상액 온도: 20C-40 카드쥐스트러블 (차 0.1C)
강조하다:

digital display X-ray flaw detector

,

NDT film developer processor

,

X-ray film processor with warranty

With Digital Display NDT X-ray Flaw Detector Film Developer Processor



HDL-P17A NDT is the two high market, economical and practical industrial flushing machine. It washes the width and speed of high quality, good reliability and various specifications. It is widely used in the construction of boiler, shipbuilding, pressure vessel, petroleum and natural gas pipeline, and the quality inspection of various kinds of dynamic and pressure equipment. Praised by the clients of the testing industry.



Outstanding features:

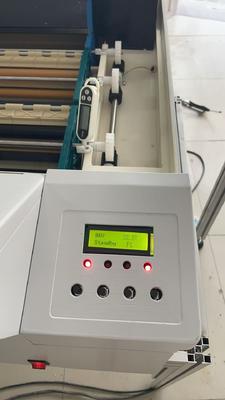

digital display: all set parameters can be read from the operation panel, easy to operate, include wide security; operation panel, can be personalized: running time, flushing temperature and replenishment.

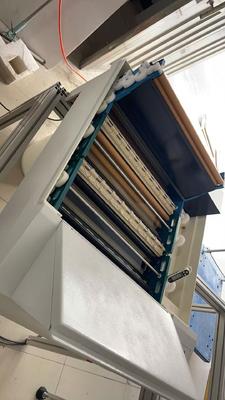

The shaft rack system of L precision roller can protect film transmission and facilitate daily cleaning and maintenance.

drying system adopts special roller combination and electronic control to ensure hot air drying film.

anti crystallization and anti-oxidation program design, continuous circulation of liquid, prevent the aging of liquid, prolong the use time, and get high-quality image.

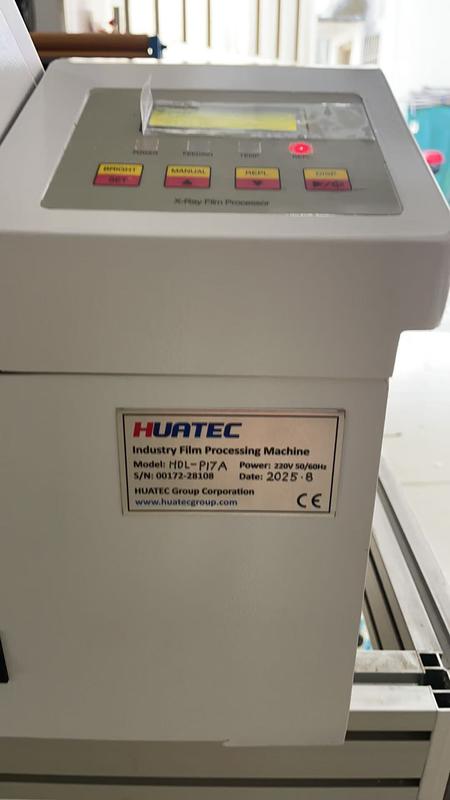

Model HDL-P17A
Film specification

Minimum 10*10cm

maximum 45*∞cm

Flushing time 90-360sec
Developing time 20-60sec
Flushing volume 140pieces / hours(14"*17")210 pieces / hours(11"*14")
Drug tank capacity Developing, fixing, and washing each 8L
Developer temperature 20℃-40 ℃adjustable (interval 0.1℃)
Drying temperature 40℃-65 ℃(automatic regulation)
Film induction Imported microswitch
Volume ㎝³ 79*69*42
weight Gross weight 60kg (net weight 55kg)
Anti crystallization and anti oxidation 45 minutes / times
Flushing process Development→Fixed shadow→washing→Dry
Supplement According to the area of film flushing, automatic water replenishment is provided, and manual replenishment is also provided. The amount of water replenishment is 20-200ml/0.3㎡
Water washing control When the film is flush, it will automatically water for 2-8L/ minutes, and automatically shut down when standby.
Power consumption 220V 50/60Hz 8.8A (flushing 2KW, standby 120W)



Standard equipment

1. development synchronous heating system

2. development of independent circulation system

3. development synchronous supplementary system

4. water controlled water saving system of solenoid valve

5. professional conical air duct drying system

6. mechanical sensing feeding system

7. DKM electronic speed control energy saving system



Technical parameters:

The size of u film is minimum 60 * 100mm, the widest 450mm width and the longest film is 15 meters.

film type film & sheet film

The running time of u is 4.5 to 14 minutes

chip speed 100~33 mm / min

development time is 60-180 seconds (recommended for 90 seconds)

washing volume 350*430mm 25 sheets / hour; 80*300mm 100 sheets / hour.

volume development, fixing and washing each 6.8 liters.

supplementary volume automatic test supplement 50-200 ml / m2

development temperature can be adjusted from 20-40 degrees

setting temperature automatically adjusts according to developing temperature

drying temperature 40-70 degrees

water temperature 5~30 degree

water consumption film is less than 2 liters / minutes during operation

power 220~240V8.8A 50 or 60Hz

weight 60 kg

volume (long * width * height) 78 x 59 x 45 cm

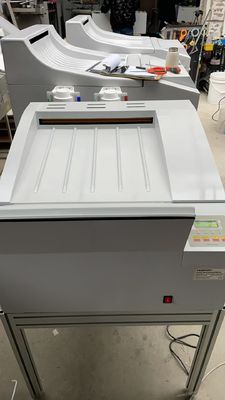

With Digital Display NDT X-ray Flaw Detector Film Developer Processor 0
