제품 상세 정보:
|
| 필름 크기: | Minimum: 50×100mm, Max. 최소: 50×100mm, 최대. Width: 450mm 폭: 450mm | 필름 종류: | 롤 오 플랫 영화 |
|---|---|---|---|
| 처리 시간: | 3.2~16분 (0.1분 조절 가능) | 공급 속도: | 155~765mm/분. |
| 탱크 용량: | Dev. 개발. Fix. 고치다. Wash.13L for each 각 세탁.13L | 전력 소비: | 110~240V 10A, 50 또는 60Hz |

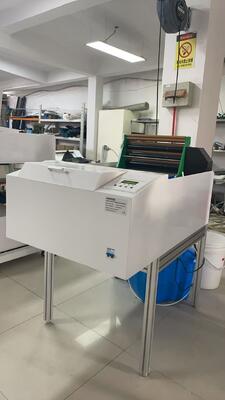

| Model | HDL-430D |
| Film Size | Minimum: 50×100mm, Maximum Width: 450mm |
| Film Type | Roll or flat film |
| Film Probes | 4 sets of micro inductive probes |
| Processing Time | 3.2～16 minutes (0.1 minute adjustable) |
| Feed-in Speed | 155～765 mm/min |
| Processing Capacity | 350×430mm: 22-109 sheets/hour 80×300mm: 110-545 sheets/hour (at 5.4 min processing time) |
| Tank Volume | Developer, Fixer, Wash: 13L each |
| Water Replenishment | Automatic replenishment according to film size: 50～700ml/㎡ |
| Developer Temperature | 20～40℃ (0.1℃ adjustable) |
| Fixer Temperature | Automatically adjustable |
| Dryer Temperature | 20～70℃ (5℃ adjustable) |
| Water Temperature | 5～30℃ |
| Washing Control | Working: automatic water intake less than 2L/min Standby: automatic shutdown |
| Power Consumption | 110～240V 10A, 50 or 60Hz |
| Weight | Gross: 128kg, Net: 88kg |
| Dimensions | Approximately: 108×71.5×113cm |
