제품 상세 정보:
|
| 쐐기각: | 45 ° 、 60 ° 및 70 ° | 주파수 범위: | 2-2.5MHz |
|---|---|---|---|
| 강조하다: | AWS ultrasonic weld inspection probe,weld seam testing ultrasonic block,NDT ultrasonic probe with block |
||
| Attribute | Value |
|---|---|
| Wedge Angle | 45°, 60° and 70° |
| Frequency range | 2 - 2.5MHz |

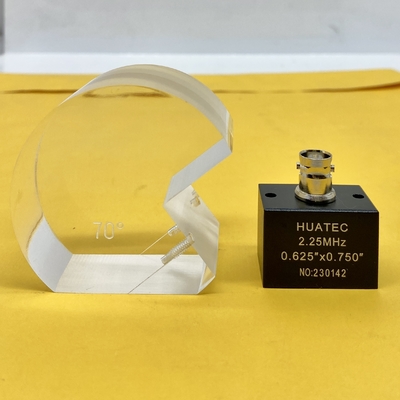

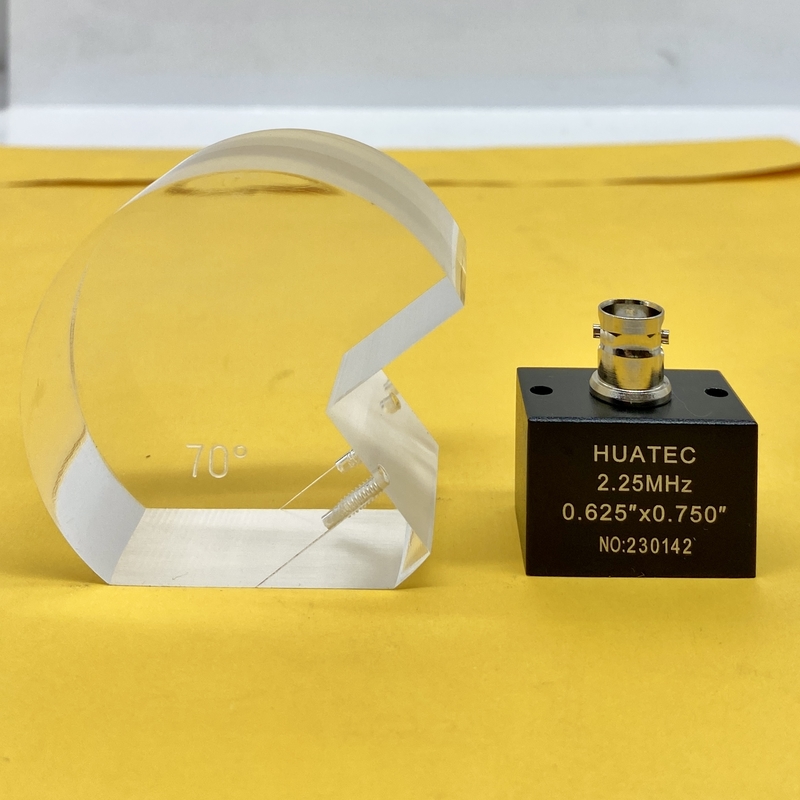

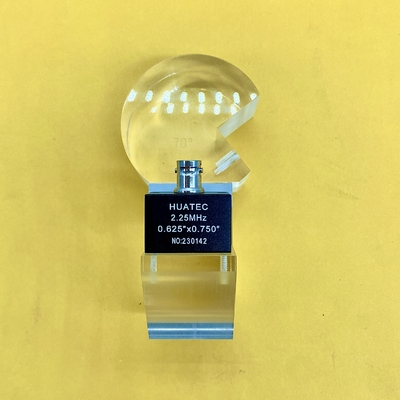

The Weld Seam Inspection Ultrasonic AWS Probe & Block is designed for precision inspection of weld integrity in industrial applications.
| Frequency: | 2-2.5MHz range ensures detection sensitivity while effectively penetrating weld material |
| Wafer size: | Square/rectangular transducer (15-25mm width, 15-20mm height) with 1.2:1.0 maximum aspect ratio |
Primarily used for ultrasonic testing of bevel welds and heat-affected zones in plate thicknesses of 8-200mm (5/16in. - 8in.). Widely applied in non-destructive testing for steel structures, bridges, and shipbuilding to detect cracks, pores, and slag inclusions.
Includes wedges for generating 30° transverse waves and 70° longitudinal waves in steel materials. Features 30-70-70 technology for quantitative crack measurement. Also available with Snail wedges and Serrated wedges for different inspection requirements.
