제품 상세 정보:
|
| 측정 요소 범위 ：: | 알루미늄 (AL) - 우라늄 (U) | 탐지기: | SDD |
|---|---|---|---|
| Test time: | 10-40s | 관전류: | 0-1MA (프로그램 제어) |
| 고압: | 0-50kV (프로그램 제어) | 확대: | 광학 : 40-60 × |
| 입력 전압 :: | AC220V±10% 50/60HZ | ||
| 강조하다: | XRF coating thickness tester,X-ray fluorescence paint tester,non-destructive coating thickness analyzer |
||
| Attribute | Value |
|---|---|
| Measurement element range | Aluminum (Al) - uranium (U) |
| Detector | SDD |
| Test time | 10-40s |
| Tube current | 0-1mA (Program-controlled) |
| High pressure | 0-50kV (Program-controlled) |
| Magnification | Optics: 40-60× |
| Input voltage | AC220V±10% 50/60HZ |

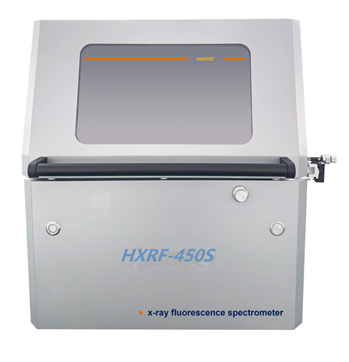

The HXRF-450S XRF X-ray Fluorescence Coating Painting Thickness Tester is a high-performance instrument designed for precise coating thickness measurement and material analysis across various industries.
Ideal for electronic components, semiconductors, PCB, FPC, LED brackets, auto parts, functional plating, decorative parts, connectors, terminals, sanitary ware, jewelry and other industries for surface coating thickness measurement and material analysis.
| Parameter | Specification |
|---|---|
| Measurement element range | Aluminum (Al) - uranium (U) |
| Detector | SDD |
| Collimator types | Fixed single hole (0.15mm, 0.2mm, 0.5mm) |
| Optical path system | Vertical irradiation |
| Magnification | Optics: 40-60× |
| Display modes | Elemental spectrum, label pattern, elements and measurement values |
| Camera | High-definition industrial camera with local magnification |
| Applications | Single/double coating, alloy coating, electroplating solution |
| Input voltage | AC220V±10% 50/60HZ |
| Communication | High-speed USB transmission |
| Dimensions | 555*573*573mm (410*478*245mm cavity) |
| X-ray source | High-precision micro-focusing light tube (W Target) |
| Software features | FP algorithm, automatic fault diagnosis/correction, automatic compensation |
