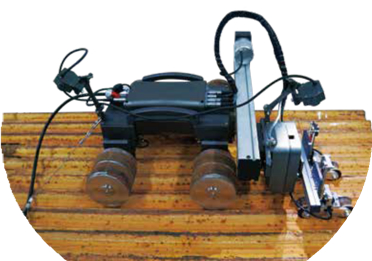

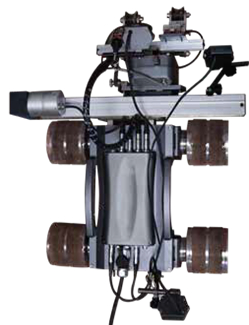

TG-M80 Water-cooled Wall Magnetic Crawler Thickness Measurement System

TG-M80 Water-cooled Wall Magnetic Crawler Thickness Measurement System
TG-M80 Water-cooled Wall Magnetic Crawler Thickness Measurement System TG-M80 Water-cooled Wall Magnetic Crawler Thickness Measurement System

큰 이미지 :  TG-M80 Water-cooled Wall Magnetic Crawler Thickness Measurement System

제품 상세 정보:
원래 장소: 중국
브랜드 이름: HUATEC
인증: CE
모델 번호: TG-M80
결제 및 배송 조건:
최소 주문 수량: 1 PC
가격: USD118450/set - USD133900/set
포장 세부 사항: 통 패킹상자
배달 시간: 10-15 당신의 지불의 영수증 며칠 뒤에 일합니다
지불 조건: 전신환, 페이팔
공급 능력: 5는 / 달에서 설정합니다

TG-M80 Water-cooled Wall Magnetic Crawler Thickness Measurement System

설명
두께 측정: 최대 길이는 80 미터이며 사용자 정의 할 수 있습니다. 최대 수직 부하: 25kg
최대 정면 당기기 힘: 40 킬로그램 격자 암의 최대 수평 변위 속도: 100mm/초
격자 팔 사양: 300mm 제어 핸들: 200mm*135mm*60mm
크롤링 속도: 5mm-100mm/초
강조하다:

water-cooled thickness measurement system

,

magnetic crawling NDT equipment

,

dual-channel four-wheel drive wall scanner

TG-M80 Water-cooled Dual-channel Four-wheel Drive Wall Magnetic Crawling Thickness Measurement System
Product Specifications
Attribute Value
Thickness measurement The maximum length is 80 meters and can be customized
Maximum vertical load 25kg
Maximum frontal pulling force 40KG
The maximum horizontal displacement speed of the grating arm 100mm/seconds
Grating arm specification 300mm
Control handle 200mm*135mm*60mm
Crawling speed 5mm-100mm/seconds
Product Description

The TG-M80 Water-cooled Dual-channel Four-wheel Drive Wall Magnetic Crawling Thickness Measurement System eliminates the need for scaffolding, anti-corrosion coating grinding, or coupling agents. It performs video detection for unobstructed crawling across water-cooled walls in all directions while conducting corrosion thickness measurement inspections.

This system is ideal for routine boiler water-cooled wall inspections and rapid response to emergency situations such as pipe bursts for troubleshooting.

Detailed Parameters
Bare vehicle size 390mm*400mm*190mm
Naked weight of the vehicle body 20KG
Thickness measurement Accuracy: 0.04mm, range: 1.5-200mm (carbon steel)
Key Features
  • Dual-channel electromagnetic thickness measurement: No grinding or anti-corrosion layer removal required, no coupling agent needed, doubling detection efficiency.
  • Protective design: Magnetic wheels feature an outer adhesive layer to prevent damage to anti-corrosion coatings.
  • Adaptive vehicle body: Accommodates various water-cooled wall surfaces, crosses obstacles, and crawls in all directions without scaffolding.
  • High-precision grating arm: Enables flexible control and high-precision programmed scanning.
  • Triple camera system: Equipped with three high-definition cameras for front, rear, and thickness measurement position observation.
  • Exceptional magnetic force: 25kg maximum vertical load capacity with no movement restrictions, even during power outages.
Operational Advantages

High safety: Uses rare earth magnets for permanent magnetic wheels, eliminating fall risks during power outages.

Dynamic movement: Four-motor, four-wheel drive system enables forward/backward movement and left/right steering.

Stable operation: Active cantilever wheel design adapts to curved surfaces, minimizes shaking, and features real-time level sensing with self-correcting vertical driving routes.

High efficiency: Multi-channel electromagnetic ultrasonic probe enables simultaneous detection of multiple water-cooled wall tubes.

TG-M80 Water-cooled Wall Magnetic Crawler Thickness Measurement System 0
