| Motor power: | Motor power | Working disk diameter: | φ254 mm (optional φ200, φ230, φ300mm) |
|---|---|---|---|
| RPM (r/min): | 5-1000. | Four-speed manual (r/min): | V1=200, V2=400, V3=600, V4=800 (user can change) |
| 강조하다: | HPA-2SE metallographic grinding machine,1KW motor polishing machine,metallographic polishing equipment with warranty |
||

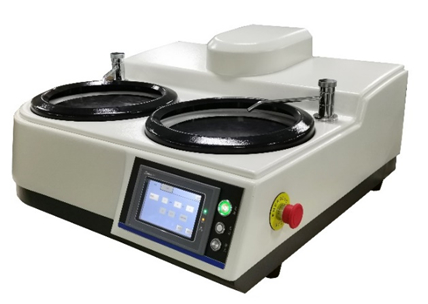

HPA-2SE Metallographic Grinding & Polishing Machine
| Item | Specifications |
| Model | HPA-2SE |
| Motor power | 1Kw |
| Working disk diameter | φ254 mm (optional φ200, φ230, φ300mm) |
| RPM (r/min) | 5-1000. |
| Turning direction | Counterclockwise/clockwise optional, positive and negative turn automatic switch |
| Programming | User can self-program, call |
| Four-speed manual (r/min) | V1=200, V2=400, V3=600, V4=800 (user can change) |
| Overall dimension (mm) | 760 x 730 x 360 (L * W * H) |
| Weight | 38kg |
| Name | quantity | Name | Quantity |
| Anti-stick disc (254mm) | 2 | Magnetic working disc (254mm) | 2 |
|
Sandpaper (with back glue, 250 diameter) 180#, 800#, 1500# |
2 each |
Diamond suspension grinding polish 6 microns 200 ml |
1 bottle |
| Flocking polishing cloth (with back glue, 250mm) | 1 sheet | Canvas polishing cloth (with back glue, 250mm) | 1 piece |
3. Standard accessories
| Name | quantity | Name | Quantity |
| Anti-stick disc (254mm) | 2 | Magnetic working disc (254mm) | 2 |
|
Sandpaper (with back glue, 250 diameter) 180#, 800#, 1500# |
2 each |
Diamond suspension grinding polish 6 microns 200 ml |
1 bottle |
| Flocking polishing cloth (with back glue, 250mm) | 1 sheet | Canvas polishing cloth (with back glue, 250mm) | 1 piece |
