제품 상세 정보:
|
| 최대 관통 두께 강철(A3): | 40 밀리미터 | 초점 거리: | 600 밀리미터 |
|---|---|---|---|
| 노출 시간: | 5 분 | 관전압(kVp): | 150-300 |
| 초점 MM2: | 1.0 × 2.5 | 방사각: | 360°*30° |
| 강조하다: | 300kV industrial X-ray machine,NDT X-ray machine with ceramic tube,industrial non-destructive testing equipment |
||
| Attribute | Value |
|---|---|
| Max Penetration thickness Steel (A3) | 40mm |
| Focal Distance | 600mm |
| Exposure Time | 5min |
| Tube voltage (KVP) | 150-300 |
| Focus mm² | 1.0×2.5 |
| Radiation Angle | 360°×30° |

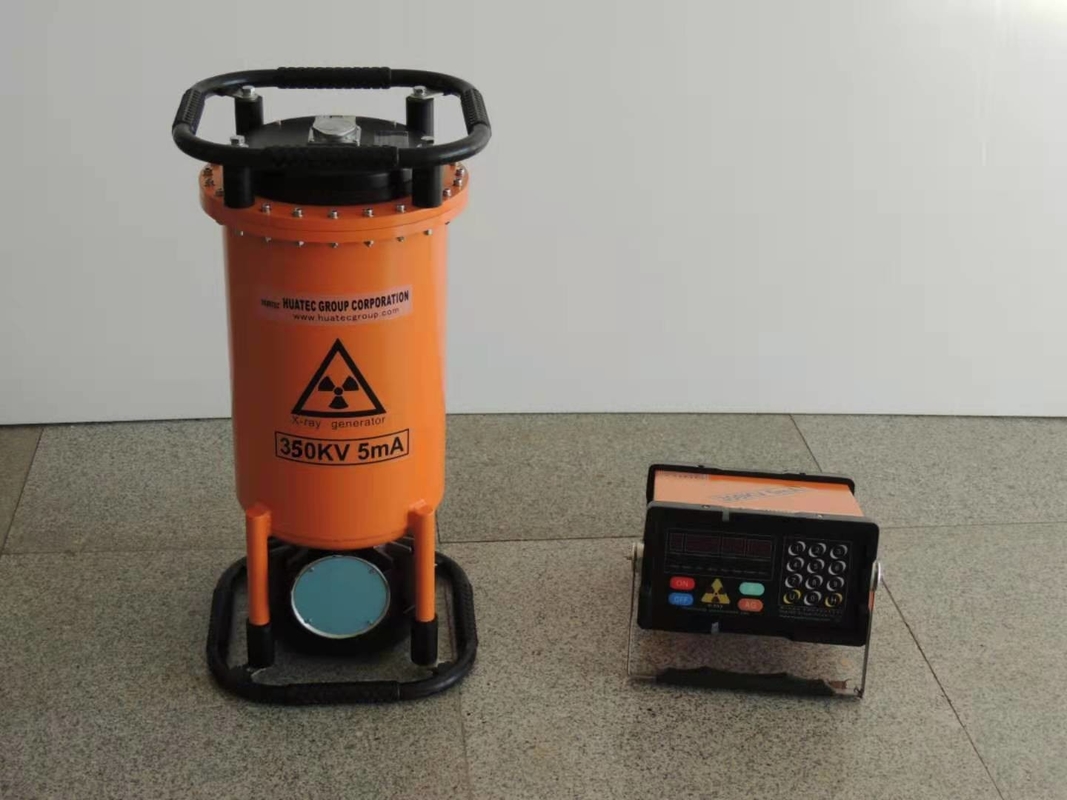

The XXGH-3005 features an advanced control system designed for industrial NDT applications. Its modular structure ensures high reliability and easy maintenance, while intelligent features protect equipment longevity and operator safety.
| TYPE ITEM | XXGH-3005 |
|---|---|
| Max Penetration thickness Steel (A3) | 40mm |
| Focal Distance | 600mm |
| Exposure Time | 5min |
| Film Type | HUATEC T7 |
| Double lead foil Intensifying screen | 0.03 |
| Darkroom Disposal | 20±2℃ |
| Development | 5minutes |
| Blackness | 1.5 |
| Input Voltage (V) | 220V±10% 50―60Hz |
| Input Capacity (KVA) | 3.0 |
| Output Tube voltage (KVP) | 150-300 |
| Output Tube current (mA) | 5 |
| Stability | ±1% |
| X-RAY Tube Focus mm² | 1.0×2.5 |
| X-RAY Tube Radiation Angle | 360°×30° |
| Sensitivity | k≤1.8% |
| Operation Mode | Intermittent operation (1:1 radiating to cooling time ratio) |
| X-Ray Controller Dimension | 270×270×140 |
| X-Ray Controller Weight | 9kg |
| X-Ray Controller Circuit Structure | Micro-computer control, Modular structure, Voice prompt |
| X-RAY Generator Cooling | Force air cooling |
| X-RAY Generator Insulation | SF6 Gas Insulation |
| X-RAY Generator Working Pressure | 0.35Mpa-0.45Mpa |
| X-RAY Generator Dimension | 340×340×700 |
| X-RAY Generator Weight (kg) | 32kg |
| Working Temperature | -10℃―+40℃ |
