제품 상세 정보:
|
| 최대 관통 두께 강철(A3): | 60mm | 초점 거리: | 600 밀리미터 |
|---|---|---|---|
| 노출 시간: | 5 분 | 암실 처리: | 20±2℃ |
| 감수성: | k ≤1.8% | ||
| 강조하다: | 350kV X-ray weld flaw detector,X-ray detector for 60mm steel,non-destructive testing X-ray equipment |
||
| Attribute | Value |
|---|---|
| Max Penetration thickness Steel (A3) | 60mm |
| Focal Distance | 600mm |
| Exposure Time | 5min |
| Darkroom Disposal | 20±2℃ |
| Sensitivity | k≤1.8% |

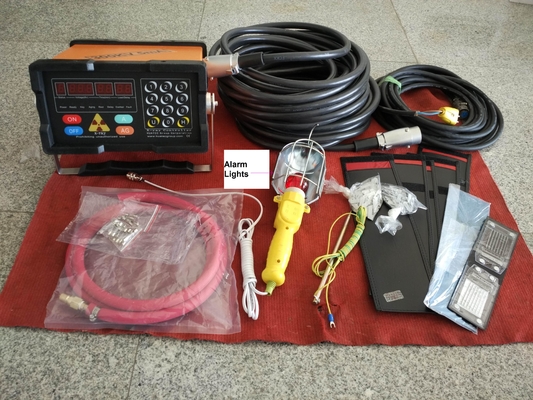

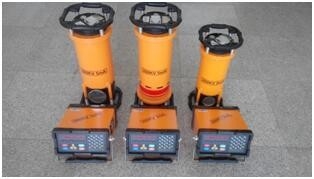

The XXG/XXQ series x-ray flaw detector produced by HUATEC Group Corporation adopts variable-frequency and constant-frequency pulse techniques. The XXG/XXQ series controllers feature novel structure, perfect performance, and convenient portability. Based on microcomputer control system and modular structure, the integral machine achieves better stability and reliability. For customer convenience, the machine also offers an aging function to increase service life.
Our generator adopts gas insulation, forced air cooling, and grounded anode, with excellent properties of small volume and light weight. The products have been widely used for nondestructive testing in aerospace, welding engineering, shipbuilding, boiler pipe, petrochemical engineering, aircraft manufacturing, automotive, and defense industries.
| Parameter | Value |
|---|---|
| Max Penetration thickness Steel (A3) | 60mm |
| Focal Distance | 600mm |
| Exposure Time | 5min |
| Film Type | TianJin Ⅲ |
| Double lead foil Intensifying screen | 0.03 |
| Darkroom Disposal | 20±2℃ |
| Development | 5minutes |
| Blackness | 1.5 |
| Input Voltage | 220V±10% 50―60Hz |
| Input Capacity (KVA) | 2.0 |
| Output Tube voltage (KVP) | 200-350 |
| Output Tube current (mA) | 5 |
| Stability | ±1% |
| X-RAY Tube Focus mm² | 1.5×1.5 |
| Radiation Angle | 40±5° |
| Sensitivity | k≤1.8% |
| Operation Mode | Intermittent operation, Radiating time to cooling time is 1:1 |
| X-Ray Controller Dimension | 340×340×670 |
| Weight | 32kg |
| Circuit Structure | Micro-computer control, Modular structure, Voice prompt |
| X-RAY Generator Cooling | Force air cooling |
| Insulation | SF6 Gas Insulation |
| Working Pressure | 0.35Mpa-0.45Mpa |
| Working Temperature | -10℃―+40℃ |
