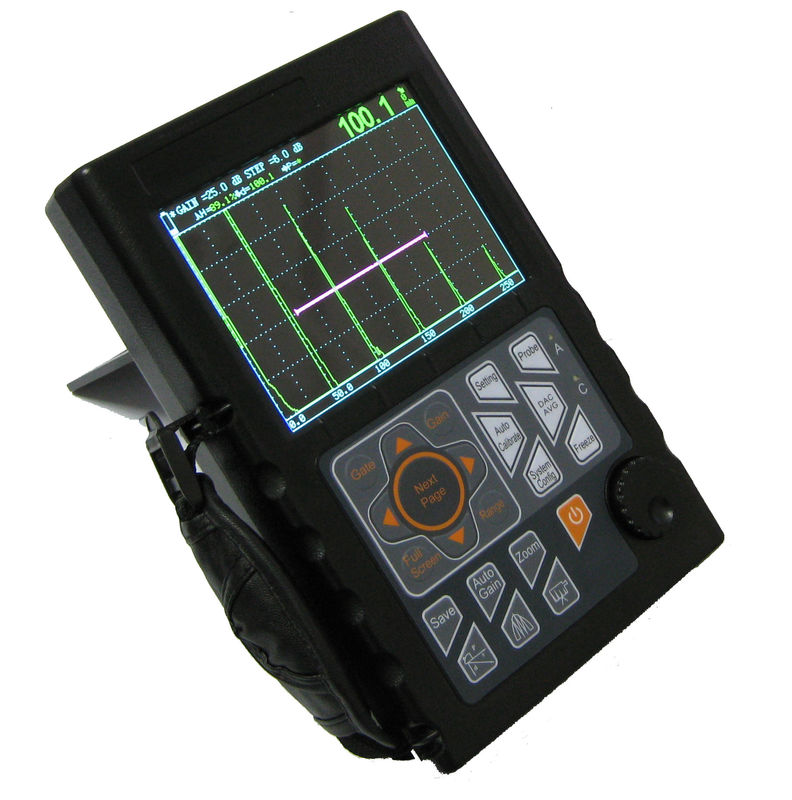

FD510 Portable Ultrasonic Welding Flaw Detector 0-6000mm Range

FD510 Portable Ultrasonic Welding Flaw Detector 0-6000mm Range
FD510 Portable Ultrasonic Welding Flaw Detector 0-6000mm Range FD510 Portable Ultrasonic Welding Flaw Detector 0-6000mm Range

큰 이미지 :  FD510 Portable Ultrasonic Welding Flaw Detector 0-6000mm Range

제품 상세 정보:
원래 장소: 중국
브랜드 이름: HUATEC
인증: CE
모델 번호: FD510
결제 및 배송 조건:
최소 주문 수량: 1 PC
가격: USD1725/set - USD1950/set
포장 세부 사항: 통 패킹상자
배달 시간: 10-15 당신의 지불의 영수증 며칠 뒤에 일합니다
지불 조건: 전신환, 페이팔
공급 능력: 5는 / 달에서 설정합니다

FD510 Portable Ultrasonic Welding Flaw Detector 0-6000mm Range

설명
측정 범위(MM): 0 ~ 6000 수직 선형성 오류: ≤3%
수평 선형성 오류: ≤0.1% 펄스 변위(μs): -20 ~ +3400
재료 속도(m/s): 1000 ~ 15000 게인(dB): 0 ~ 110
주파수 범위(MHz): 0.5 ~ 15 0.5 ~ 15
강조하다:

portable ultrasonic flaw detector

,

ultrasonic welding flaw detector

,

non-destructive testing equipment 6000mm range

FD510 Portable Ultrasonic Welding Flaw Inspection Test Machine
Technical Specifications
Attribute Value
Measuring Range (mm) 0 - 6000
Vertical Linearity Error ≤3%
Horizontal Linearity Error ≤0.1%
Pulse Displacement (μs) -20 - +3400
Material Velocity (m/s) 1000 - 15000
Gain (dB) 0 - 110
Frequency Range (MHz) 0.5 - 15
Product Features
  • Automated calibration with 0-110dB gain
  • Supports DAC, AVG, TCG, B scan, AWS standards
  • High-speed capture with very low noise
  • Solid metal housing - water, oil, and dust proof
  • High contrast waveform viewing
  • Powerful PC software with Excel report export
  • Automated display of precise flaw location (Depth, level, distance, amplitude)
  • Automated switch between three staff gauges
  • Automated calibration of transducer parameters
  • 6dB DAC functions
  • 100 independent setups with flexible criteria input
  • 500 A graph memory capacity
  • Automated gain and gain scan
  • Peak Hold and Peak Memory functions
  • B scan capability
  • AWS D1.1 compliant
  • Unlimited length test process video recording via USB
  • 9-hour continuous operation with Li battery
  • Embedded software supports online updates
Detailed Parameters
Parameter Value Parameter Value
Measuring Range (mm) 0 - 6000 Measurement Mode Single, Dual, Thru
Vertical Linearity Error ≤3% Reject 0~80%
Horizontal Linearity Error ≤0.1% Pulse Displacement (μs) -20 - +3400
Sensitivity Leavings ≥62dB Zero (μs) 0.0 - 99.99
Dynamic range ≥32dB Port Type BNC(Q9)
Resolving Power ≥36dB Operating Temperature (℃) -20 - 50
Frequency Range (MHz) 0.5 - 15 Dimensions (H×W×D, mm) 240×156×48
Gain (dB) 0 - 110 Weight (kg) 1.0 (with battery)
Material Velocity (m/s) 1000 - 15000
Standard Delivery
  • Main unit
  • 2.5MHZ-ф20 straight probe
  • 4MHZ-8x9mm, 60° angle probe
  • 4A/9V power adapter
  • Probe connection cable (BNC to BNC)
  • Probe connection cable (BNC to Lemo 00)
  • Instruction manual
  • Carrying case
  • RS232-USB converter
Additional Accessories (Optional)
  • Data managing software
  • Data managing cables RS232
  • Straight probes (5MHZ, 2.5MHZ, 2.25MHZ, 1MHZ-ф20)
  • Angle probes (4MHZ-45°,60°,70°,80° and 2MHZ-45°,60°,70°,80°)
  • Probe T/R (5MHz and 2.5MHz-ф20mm, focus 15mm)
  • Various connection cables (BNC-BNC, BNC-Lemo, Lemo-Lemo)
  • Lithium ion battery
  • Power adapter (4A/9V)
  • Power Cable
  • Leather case
  • Test blocks (V1, V2, DAC, ASME etc.)
FD510 Portable Ultrasonic Welding Flaw Detector 0-6000mm Range 0 FD510 Portable Ultrasonic Welding Flaw Detector 0-6000mm Range 1
