제품 상세 정보:
|
| 표시하다: | 11인치 800X600 TFT 컬러 디스플레이 | 변환기 포트: | 160핀 PA 변환기 포트; Lemo-00 기존 변환기 포트, TR 또는 T&R용 |
|---|---|---|---|
| 메모리: | 내장: 16G RAM+4GB 플래시;SD 카드(최대 32G);외부: USB 드라이브 | 무게: | 3.5Kg(배터리 1개 포함) |
| 차원: | 284mm×202mm×95mm | 전원공급장치: | 교류：100～240V, 50～60Hz;직류：12V |
| 충전 중: | (배터리) 내부 또는 개별적으로 | 배터리 수명: | 6 시간 |
| 강조하다: | portable phased array flaw detector,16/64 emission receive ultrasonic detector,phased array ultrasonic flaw detector |
||

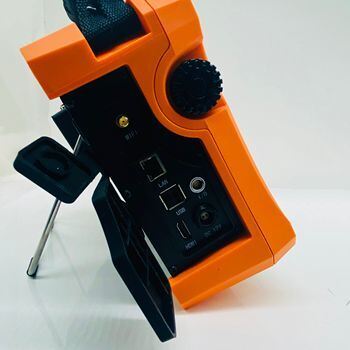

16/64 Emission/Receive Portable Phased Array Ultrasonic Flaw Detector Phased Array Flaw Detector
Introduction
HPA-500 is a portable 64-CH phased array ultrasonic flaw detector originally developed by HUATEC. It is water-proof and oil-proof , fan-free and with touch screen. Whole-process data logging, innovative phased array probes and inspection methods being the advantages, this model guarantees superior performance and support, which makes it among the best of its kind for high C/P ratio.
Main Function
★ File & Entry Management System for Flexible Bridging between setting (Focal Law & Model), Calibration and Inspection
★ Modular Configuration: L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, CrankShaft , Pipeline, TOFD, UT(Conventional),
★ 3D Simulation Model
★ Image analysis
★ Natural Structure of Heat Dissipation
★ Dynamic Depth Focusing (DDF)
★ Smooth Filtering
★ Touch Screen
★ ACG Calibration
★ TCG Calibration
Channel Configuration
| Mode | PA | UT | TOFD |
| Channel | 16:64 | 2 | 2 |
Physical Specification
| Display | 11-inch 800X600 TFT color display |
|
Transducer Ports |
160-pin PA transducer port; Lemo-00 conventional transducer Port, for either T-R or T&R |
| I/O Ports | USB2.0 Port: 2(qty) |
| HDMI; encoder | |
| LAN(Gigabit-NIC); | |
| WIFI | |
| I/O (commissioning) | |
| 2D Encoder | |
| Memory |
In-Built: 16G RAM+4GB FLASH ;SD card (max to 32G); External: USB drive |
| Weight | 3.5Kg (with 1 battery) |
| Dimension | 284mm×202mm×95mm |
| Power Supply | AC:100～240V,50～60Hz；DC:12V |
| Charging | (battery) within or individually |
| Battery Life | 6 Hours |
| Working Power | 24W |
| Language | English |
|
Temperature Conditions |
Ambiance:-20℃～50℃ Storage:-20℃～60℃ |
| IP | IP54 |
Performance Specification
| Mode | PA | UT | TOFD |
| PRF | 50Hz～10kHz | 50Hz～5kHz | 50Hz～5kHz |
| Voltage |
Bipolar, ±45～±100V, with 5V per step |
Negative Square Wave, -75V～-250V, with 25V per step | Negative Square Wave, -75V～-250V, with 25V per step |
| Pulse Width |
20ns～800ns, with 5ns per step |
20～800ns, with 5ns per step | 20～800ns, with 5ns per step |
| Damping | 50Ω | 80Ω / 400Ω | 80Ω / 400Ω |
| Sampling Rate | 125MHz | 200MHz | 200MHz |
| Delay Precision | 2.5ns | N/A | N/A |
| Rx Delay | 0～40us | N/A | N/A |
| Bandwidth | 0.5MHz～19MHz | 0.5MHz～15MHz | 0.5MHz～15MHz |
| Gain | 0.0～80dB | 0.0～110.0dB | 0.0～110.0dB |
| Filter |
0.5-9.6MHz,2.5-12.9MHz, 3.8-19MHz Optional |
broadband, narrowband | broadband, narrowband |
| Rectification | FW | FW | RF |
| Reject | 0~80% | 0~80% | 0~80% |
| Scan Mode | A/L/S/C | A | A/D |
| Triggering | Encoder | N/A | Encoder |
| Scan Line | Max 128 | N/A | N/A |
| Skew |
L-scan:-89°～+89° S-scan:-89°～+89° |
N/A | N/A |
| Smart-Cal | Velocity/Delay/ACG/TCG/Encoder | DAC/DGS |
Delay/X-Value/PCS/ Wave/Encoder |
| Range |
0.0～1000mm, min 1mm |
0.0～2000mm | 0.0～2000mm |
|
Displaying Delay (max) |
1000mm | 2000mm | 2000mm |
|
Pulse Shift (max) |
N/A | 2000mm | 2000mm |
| Unit | mm | mm | mm |
| Gate | A/B | A/B | A/B |
| Gate Start | Available within the range | Available within the range | Available within the range |
| Gate Width | Available within the range | Available within the range | Available within the range |
| Gate Threshold | 0-100% | 5-95% | 0-100% |
| Alarm Signal | Buzzer / LED | Buzzer / LED | Buzzer / LED |
| Spotting | Crest / Flank | Crest / Flank | Crest / Flank |
| Readout |
Amp/Path/ Horizontal/Depth |
Amp/Path /Horizontal/Depth |
Amp/Path /Horizontal/Depth |
| Resolution | 0.5mm | 0.1mm | 0.1mm |
Application
Packing Details
HPA-500 1pc
PAUT Probe 1pc
PAUT Probe Wedge 2pcs
UT Normal Probe 2.5P20 1pc
UT Angle Probe 2.5P13×13 60°1pc
UT Probe Cable LEMO 00-BNC 2pcs
Li-ion battery 1pc
Charger 1pc
Power converter 1pc
HDMI Cable 1pc
Crossover Cable 1pc
Allen Wrench (S2.5) 1pc
Instrument Suitcase 1pc
USB Drive Disk (8G) 1pc
User Manual 1pc
Certificate 1pc
Optional accessories
TOFD Probe 5MHz 6mm/7.5MHz 3mm/
TOFD Wedge 60°w/anti-wear nail , 70°w/anti-wear nail
TOFD Wedge R100 curve surface R100/0°
TOFD Probe Cable LEMO 00-LEMO 00
Non-Parallel TOFD Scanner
Scanner for Phased Array
Encoder Cable Extension
Other Allen Wrench for TOFD
Other probes/wedge for Phased Array and TOFD
Calibration block
