제품 상세 정보:
|
| 유효 조사 영역 380mm에서 교정: | 420*500mm | 백색광 조명: | >1200LUX |
|---|---|---|---|
| UV-FLUX 실온 25℃: | 1000-6000uW/cm² | 파장: | 상온 25℃ 365nm-370nm(UVA) |
| 플럭스 에러: | 0-40C ±10% | 힘: | UV LED-72VA 24P*3VA |
| 강조하다: | hanging type UV-A lamp,UV irradiation white light lamp,magnetic particle testing UV lamp |
||
UV-5070A 30000H Light Source Hanging Type UV-A UV Irradiation and White Light Lamp
Features:
Complies with MFS0744/ASTM E3022 standards.
The average lifespan of a 30000H light source.
UV-A center irradiance>1000-6000uW/cm ²
The UV-B/UV-C content is 0.
Compact in size, easy to install.
Continuous working with a surface temperature rise of less than 8K (8 ℃).

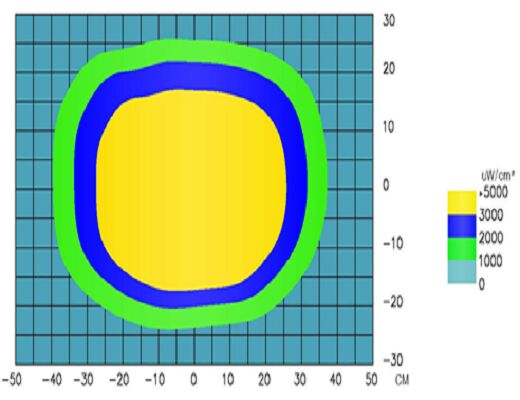

UV irradiation distribution map
No preheating required, instantly reaching 100% power.
|
Item |
Parameters/Methods |
|
formalize |
Hanging |
|
UV-FLUX Room temperature 25 ℃ |
Calibration center irradiance at 380mm is greater than 1000-6000uW/cm ² |
|
Effective irradiation area Calibration at 380mm |
420*500mm |
|
White light illumination |
＞1200LUX |
|
Wavelength |
Room temperature 25 ℃ 365nm-370nm (UVA) |
|
White light content |
＜10LUX |
|
UV-B/UV-C |
No |
|
FLUX error |
0-40℃ ±10％ |
|
Light distribution characteristics |
Central lighting distribution |
|
Power supply |
AC100-240V 50/60Hz |
|
Power |
UV LED-72VA 24P*3VA |
|
Overall dimensions |
574mm(W)*82mm(D)*224mm(H) |
|
Weight |
3.6Kg |
