Ndt Testing Instruments Constant Temperature X-Ray Film Washer

Ndt Testing Instruments Constant Temperature X-Ray Film Washer
Ndt Testing Instruments Constant Temperature X-Ray Film Washer

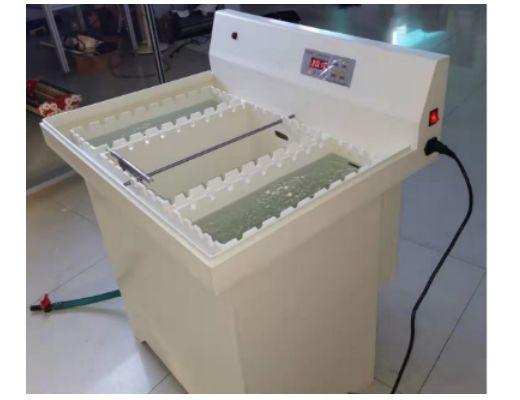

큰 이미지 :  Ndt Testing Instruments Constant Temperature X-Ray Film Washer

제품 상세 정보:
원래 장소: 중국
브랜드 이름: HUATEC
인증: ISO,CE
모델 번호: HDL-450
결제 및 배송 조건:
최소 주문 수량: 1 세트
포장 세부 사항: 나무상자에서
배달 시간: 지불 후 7-10 일
지불 조건: T/T, Western Union, PayPal
공급 능력: 10 세트/월

Ndt Testing Instruments Constant Temperature X-Ray Film Washer

설명
필름 사양: 80×300mm, 80×360mm, 354×430mm 개발 시간: 1~6분 (설정 범위)
탱크 볼륨: 7.5 갤런을 개발하고, 7.5 갤런을 고정하고, 13 갤런을 씻고 필름 금액: 80×360mm 필름은 시간당 260매 현상이 가능합니다. (현상시간 : 2분)
현상 온도: 20~40도 전원: 220~240V10A 50 또는 60Hz
강조하다:

constant temperature X-ray film washer

,

X-ray flaw detector washer

,

NDT testing film washer

Ndt Testing Instruments Constant Temperature X-Ray Film Washer



I. working principle:



According to the principle of automatic film washer, the developer and fixer are stirred (circulated) to the set temperature. Will be installed X-ray film wash piece into the washing machine is developed grooves, the washing machine automatic timing, to set a time (time setting range: 1-6 minutes) after the buzzer warning sound, working people can wash piece frame from developing slot (stop warning buzzer sounds) into the into the stop show slot (water tank) directly into 1-5 seconds into the fixing bath immediately, 1-1.5 times the fixing time is developing, the last film to be included in the water tank, water tank is developing with the time 1-1.5 times. Take out the X-ray film and place it directly in the film dryer to dry or air. At this point, the development process is complete and you have the perfect industrial film.



II.Technical parameters

Technical parameters Details


Film specifications: 80×300mm, 80×360mm, 354×430mm

Development time 1-6 minutes (setting range)

Tank volume developing 7.5 gallons, fixing 7.5 gallons, washing 13 gallons

Film amount: 80×360mm film can develop 260 sheets per hour (development time: 2 minutes)

Development temperature can be adjusted from 20 to 40 degrees

The fixing temperature is automatically adjusted according to the developing temperature

The water temperature is 5 ~ 30 degrees

Water consumption 2 l/min for film development (automatic water loading)

Power source 220~240V10A 50 or 60Hz

Weight 55kg (no liquid in tank) 65kg (filled with water)

Volume 72×57×89 cm (length × width × height)





III. Functional features



1. Automatic timing of development: when a film washing frame is put into the development tank, the machine will automatically start timing. After reaching the set time, the user will be reminded that the development time has reached (buzzer sound).



2. Deli dl-450 is equipped with a film viewing light and a dark room red light, which provides convenience for film detection after film washing and greatly improves the working efficiency



3. The development tank of deli dl-450 adopts electronic refrigeration system, which can greatly reduce the noise of the film washer and improve the film washer environment.

Ndt Testing Instruments Constant Temperature X-Ray Film Washer 0
