제품 상세 정보:
|
| 기준: | BS.EN.ASTM | 기능: | 자기 요크 결함 탐지기 |
|---|---|---|---|
| 키워드: | 자기 요크 결함 탐지기 | 사용자 정의 지원: | OEM |
| 강조하다: | AC magnetic yoke flaw detector,magnetic particle testing equipment,HCDX-Y2 flaw detector |
||
| Attribute | Value |
|---|---|
| Standard | BS.EN.ASTM |
| Function | magnetic yoke flaw detector |
| Key words | magnetic yoke flaw detector |
| Customized support | OEM |
AC Yoke Magnetic Particle Inspection Yoke
Magnetic yoke flaw detector HCDX-Y2
The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.
Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch, power cord, mainboard, UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.

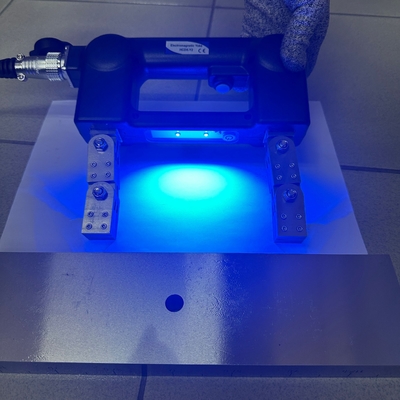

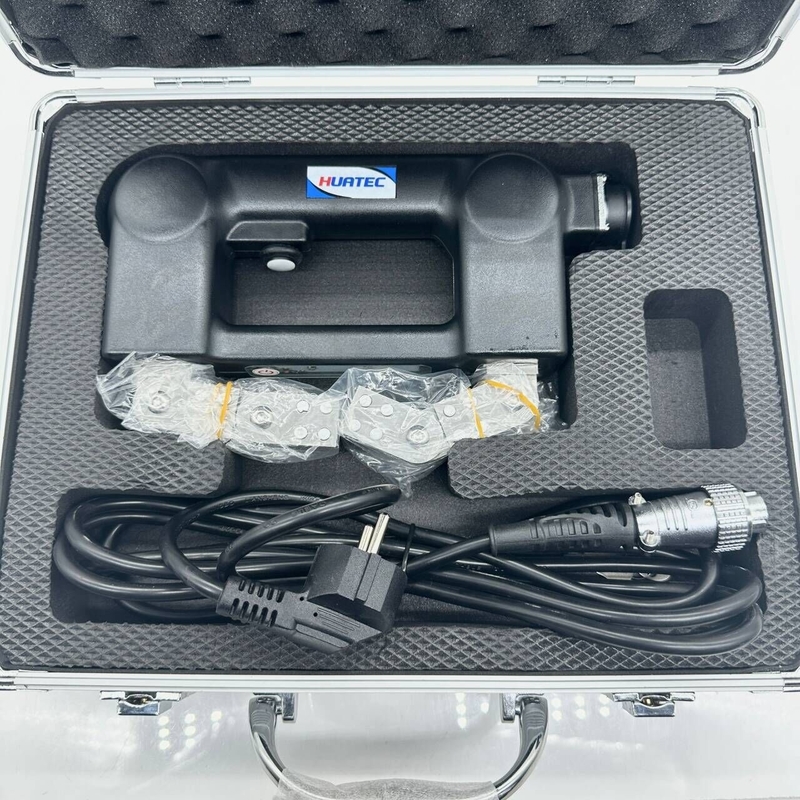

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.
Defect location: Surface
Ideal for:
Defect examples:
| Model Items | HCDX-Y2 | HCDX-Y9 |
|---|---|---|
| Electrical Requirements | AC110-115V 50/60Hz,AC220-230V 50/60 Hz,AC240V 50/60Hz | |
| Waveform | AC | |
| Tangential Field Strength | > 2kA/m at midpoint between legs / poles | |
| Working temperature | -10～+40℃ | |
| Duty Cycle | 50%, max on time is 90 seconds | |
| Ingress Protection (IEC 60259) | IP54 | |
| Relative humidity | <80% | |
| Sensitivity | ASTM E1444-05,ASME 2007 page number V | |
| DC power pack | X | ● |
| AC working current | AC2.2A | |
| DC working current | X | DC 1.5A |
| Battery charging time | X | 3小时 |
| Battery working time | X | 6h |
| Leg / Pole Span | 0~220mm | |
| Leg size | 22*22mm | |
| Power cord length | 3M | |
| Lifting Force |
AC ≥7.1kg (69N) DC ≥22.2kg (216N) |
|
| Weight |
Yoke: 2.3kg DC Battery: 0.6kg |
|
