제품 상세 정보:
|
| 입력 전압: | 3.7-4.2V | 출력 전력: | 3W |
|---|---|---|---|
| 38개 센티미터 거리에 있는 자외선의 강도: | ≥10000 UW/CM2 | 38cm 거리에 있는 방사성 영역: | c70mm |
| 빛 입구 창의 지름: | 22 | 배터리 용량: | 2600mAh |
| 충전 시간: | ≥5시간 | 근로 시간: | ≥4시간 |
| 강조하다: | Powerful Torch Lamp,LED Ultraviolet Torch,LED Ultraviolet Torch Lamp |
||
DG-10 LED Ultraviolet Torch UV Lamp
1· Introduction
DG-10 pocket lamp type LED Ultraviolet Lamp is professional portable UV Lamp researched and developed by our company. A complete range of specifications of UV Lamp can meet different requirements. The series possesses ultra-high brightness, long working hours and stable quality etc., and it conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).
The National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015) requires Black Light Lamp / Ultraviolet Lamp as follows:
2.Technical Parameters
|
Model
|
DG-10 | |
| Lamp Beads | NICHIA 365nm Ultraviolet band LED Lamp Beads | |
| Lamp Bead Amount | 1 | |
| Input Voltage | 3.7-4.2V | |
| Output Power | 3W | |
| Intensity of Ultraviolet Ray at 38cm Distance |
≥10000 uW/cm2 |
|
| Irradiated Area at 38cm Distance | ￠70mm | |
| Diameter of Light Inlet Window | ￠22 | |
| Battery Model | ICR 18650 | |
| Battery Capacity | 2600mAh | |
| Number of Battery | 1 | |
| Charging Time | ≥5H | |
| Working Hours | ≥4H | |
| Battery Life | More than 500 time for fully charge and discharge | |
| Outline Dimension | A | ￠28 mm |
| B | ￠24 mm | |
| L | 128 mm | |
| Weight(including Battery) | 240g | |
3. Main Application
Other Application
4. Characteristic and Performance
Beads produced by Japanese NICHIA company, 100% free from UV-B and UV-C element, spectrum is pure.

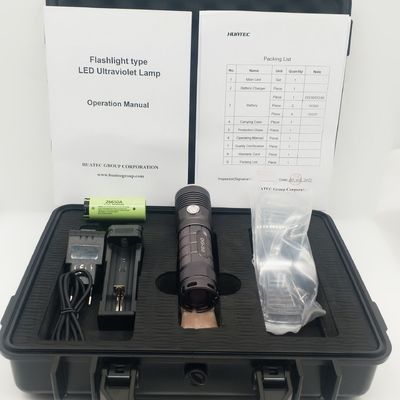

5. Configuration List
| DG-10 | |
| Main Device | 1 |
| Battery | 1 |
| Charger | 1 |
| Suit case | 1 |
| Operating Manual | 1 |
| Certification | 1 |
| Warranty Card | 1 |
| Packing List | 1 |
Optional Configuration
Protective Glass
