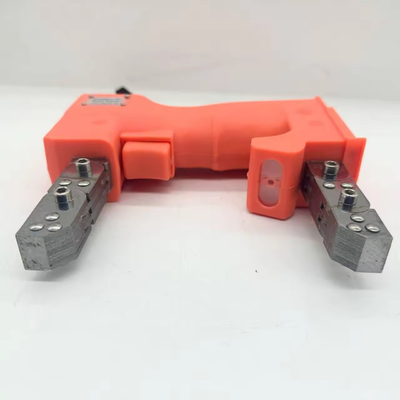

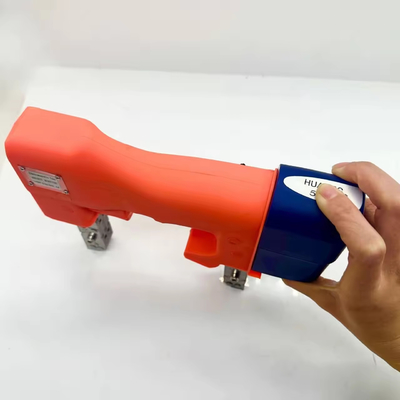

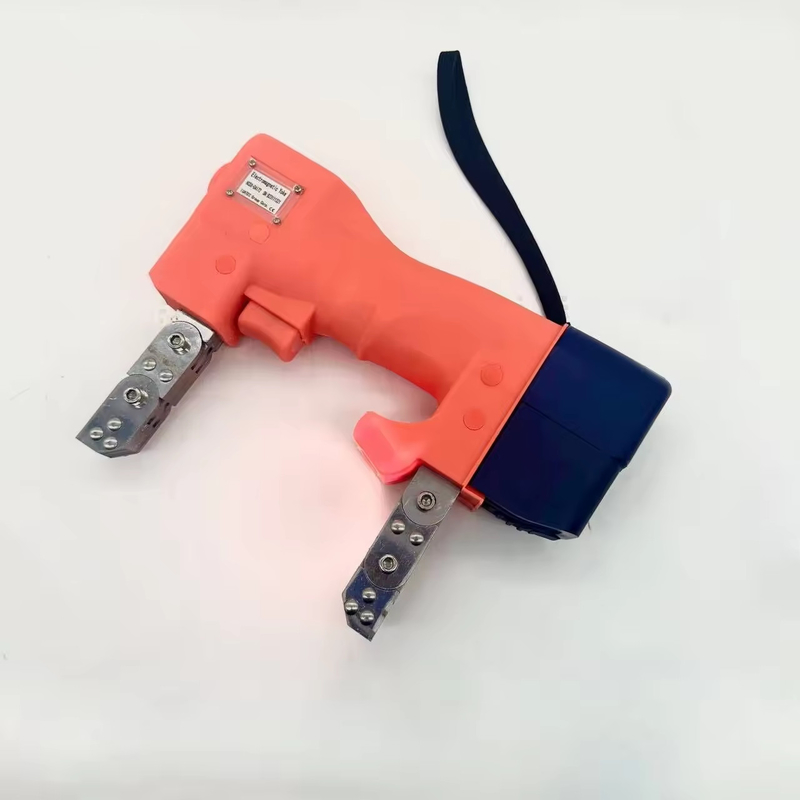

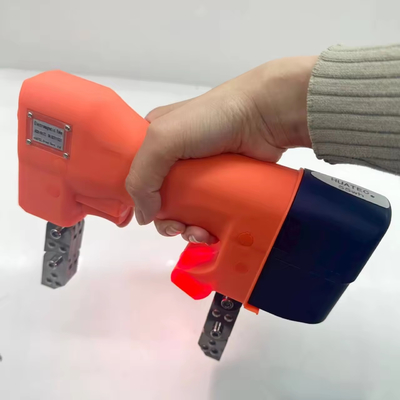

Permanent Magnet Integrated Yoke Flaw Detector

Permanent Magnet Integrated Yoke Flaw Detector
Permanent Magnet Integrated Yoke Flaw Detector Permanent Magnet Integrated Yoke Flaw Detector Permanent Magnet Integrated Yoke Flaw Detector Permanent Magnet Integrated Yoke Flaw Detector

큰 이미지 :  Permanent Magnet Integrated Yoke Flaw Detector

제품 상세 정보:
원래 장소: 중국
브랜드 이름: HUATEC
인증: ISO,CE
모델 번호: HCDX-DA172
결제 및 배송 조건:
최소 주문 수량: 1 세트
포장 세부 사항: 고급 품질 통에서
배달 시간: 5~10 근무일
지불 조건: L/C, D/A, D/P, T/T, 웨스턴 유니온, 머니그램
공급 능력: 달 당 100개 세트

Permanent Magnet Integrated Yoke Flaw Detector

설명
제품 이름: 영구 자석 통합 요크 모델: HCDX-DA172
리프팅 힘(모든 전력 레벨에서): ≥70N 감도(모든 배터리 수준에서): A1-15/100
프로브 볼륨: 165*148*45mm 백색광 강도: ≥2000럭스
강조하다:

영구 자석 결함 탐지기

,

영구 자석 융합 요크 결함 탐지

,

융합된 요크 결함 탐지기

Permanent Magnet Integrated Yoke Flaw Detector



Performance characteristics:

1. This product is a wireless integrated machine composed of a miniature yoke and an AC magnetization power supply, without any external wiring, integrating magnetic detection, power supply, lighting and other functions in one, compact structure, small size, light weight and easy to use. The defects such as disconnection and unsealed plug are solved.

2. This product can generate a stable AC magnetic field without an external power supply, ensuring detection sensitivity, and magnetic particle inspection is simple, convenient, efficient and safe.

3. This product integrates an inverted electromagnetic field intelligent constant magnetic chip, intelligently monitors and dynamically adjusts the electromagnetic intensity, so that the electromagnetic output is kept in the best state, and the lifting force and sensitivity are not affected by the battery power. Ensure the quality of inspection.

4. The instrument imitates ergonomic design and feels comfortable.

5. The instrument will automatically shut down if it is not working for a long time when it is turned on, which saves power and is safe.

6. The lithium battery can be replaced at will, which solves the worry of insufficient power supply.

7. The yoke probe of this product integrates a high-brightness LED white light source, which can be used for illumination and inspection image observation.

8. Intelligent multi-purpose switch, one-key operation of the whole machine, not only convenient to use, but also reduced failure points.

9. Intelligent no-load automatic identification and control function, avoiding the over-current and overheating of the instrument when it is no-load.

10. Intelligent soft start and soft stop functions, buffer the electrical shocks generated by the instrument during frequent starts and stops, and prevent electrical shocks from damaging components.

11. Automatic monitoring and protector for battery operation, in case of abnormal conditions, cut off the circuit in time to prevent accidents.

12. The power indicator indicates the power level in real time.

13. The special probe foot adjuster makes it convenient, easy and fast to adjust the probe foot.

14. Equipped with a dedicated work package, work easier and safer.



Technical Parameters:

Lifting force (at any power level) ≥70N
Sensitivity (at any battery level) A1-15/100
Integrated electromagnetic probe volume 165*148*45mm
Weight of integrated electromagnetic probe 1.1Kg
Center distance between magnetic poles 10~170mm
Lithium battery module volume 52*45*86mm
Lithium battery module weight 200g
White light intensity ≥2000Lux
Work duty cycle 100%
Full power working time 2 days
Battery configuration method replaceable
Charging time 4~6h
Dedicated charger 16.8V/1A/100~240VAC

Standard configuration:

Integrated yoke (without battery)    1pc

Dedicated batteries          2pc

Dedicated chargers         2pc

Foot adjustment tool          1pc

Oblique feet            1 pair

Dedicated work bag         1pc

Instruction manual         2 copies

Certificate of conformity           1 copy

Instrument case            1pc



Optional:

Lifting force test block

UV lamp for yoke

Magnetic particle sensitivity test piece



Flaw detection operation method:

1. Fully charge the battery and install a fully charged battery;

2. Use the foot adjuster to adjust the proper foot spacing;

3. Long press the "start switch" for more than 0.5 seconds to turn on the power;

4. If it is a model with UV lamp, switch the black and white light according to the needs of flaw detection;

5. Press the "start switch" to perform AC magnetic particle inspection, and the black and white light will automatically light up;

6. Release the "start switch" to stop the magnetic particle inspection, and the black and white light will go out;

7. After the flaw detection is over, just make sure that the "start switch" has been released. At this time, when the magnetic detector is not operated for more than 2 minutes, the power will be automatically cut off.
